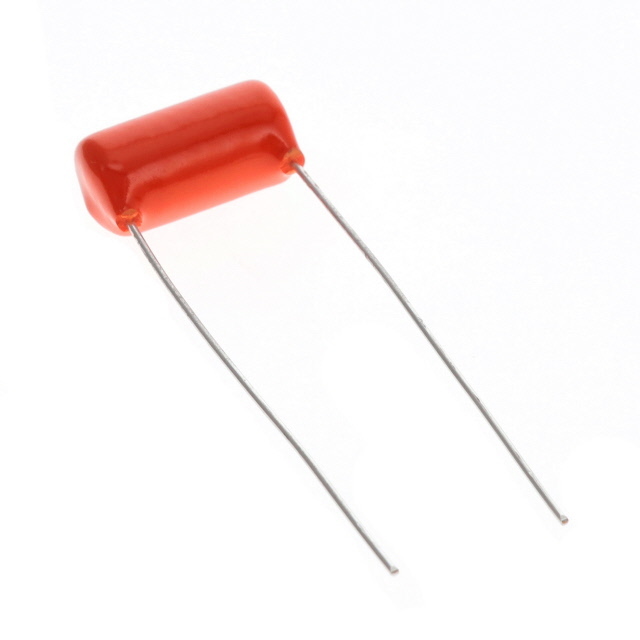

Same model may have multiple batches, images only for reference.
715P22296JA3 Cornell Dubilier Knowles – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

715P22296JA3

Part No 715P22296JA3
Catalog Film Capacitors
Description CAP FILM 2200PF 10% 600VDC RAD
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Capacitance 2200 pF
Tolerance ±10%
Voltage Rating - AC 200V
Voltage Rating - DC 600V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.331" Dia x 0.701" L (8.40mm x 17.80mm)
Height - Seated (Max) 0.622" (15.80mm)
Termination PC Pins
Lead Spacing 0.500" (12.70mm)
Applications Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1520509-715P22296JA3
Ultra Librarian 3D Model Ultra Librarian 715P22296JA3 CAD Model
