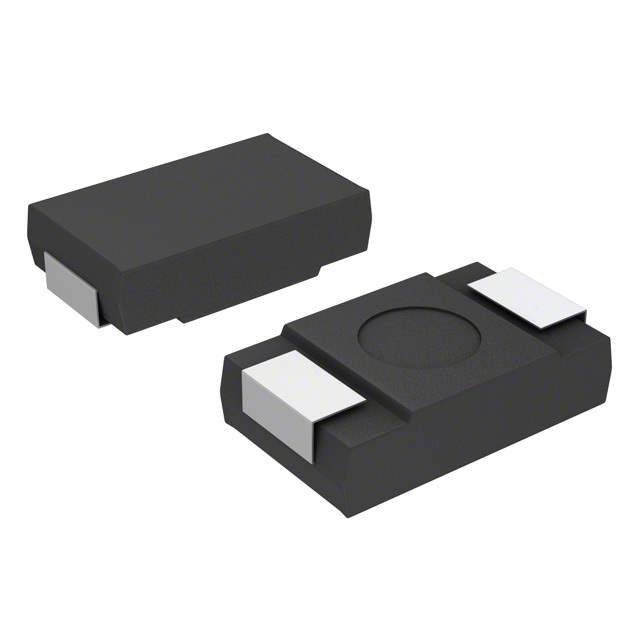

Same model may have multiple batches, images only for reference.

SPCX151M04R

Name: SPCX151M04R
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1308465
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SPCX151M04R
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum - Polymer Capacitors
Datasheet	SPCX151M04R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SPCX
Product Status	Obsolete
Type	Polymer
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	4 V
ESR (Equivalent Series Resistance)	15mOhm
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Applications	General Purpose
Ripple Current @ High Frequency	2.7 A @ 100 kHz
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.075" (1.90mm)
Surface Mount Land Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting	SMD (SMT)
Package / Case	2917 (7343 Metric)
Other Names	338-2398-1,338-2398-2,338-2398-6
Standard Package	3,500
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308465-SPCX151M04R
Ultra Librarian 3D Model	Ultra Librarian SPCX151M04R CAD Model

Description

The Cornell Dubilier Electronics (CDE) 1308465-SPCX151M04R is an obsolete aluminum-polymer capacitor with a capacitance of 150 µF and a voltage rating of 4 V.

Capacitance: 150 µF
Voltage Rating: 4 V
Tolerance: ±20%
ESR: 15mOhm
Package/Case: 2917 (7343 Metric)
Mounting Type: SMD (SMT)
Height: 0.075" (1.90mm)
Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Application: General Purpose
Lifetime: 1000 Hrs @ 105°C
Temperature Range: -40°C ~ 105°C
Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting: SMD (SMT)
