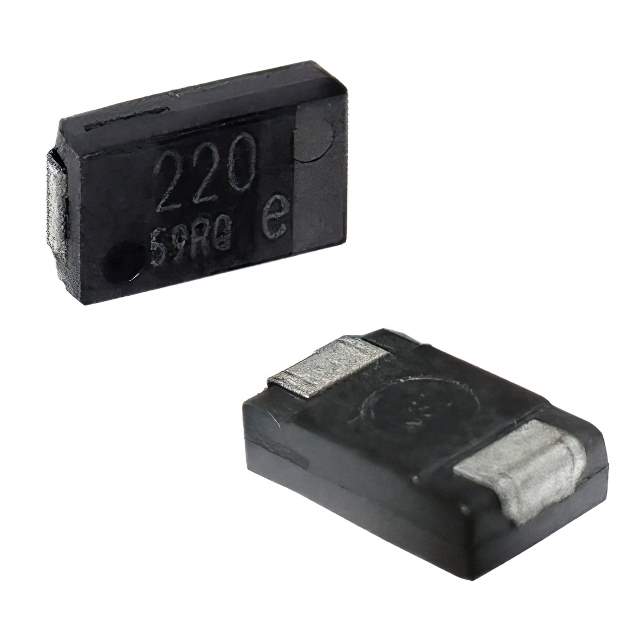

Same model may have multiple batches, images only for reference.
SPA560M06B Real Image
Same model may have multiple batches, images only for reference.

SPA560M06B

Part No SPA560M06B
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum - Polymer Capacitors
Datasheet
SPA560M06B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SPA
Product Status Obsolete
Type Polymer
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.071" (1.80mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Standard Package 100
MSL Level 3 (168 Hours)
ECCN EAR99
Win Source Part Number 1308479-SPA560M06B
Ultra Librarian 3D Model Ultra Librarian SPA560M06B CAD Model

Description

The Cornell Dubilier Electronics (CDE) SPA series aluminum-polymer capacitors are ideal for general-purpose applications.

  • Capacitance: 56 µF
  • Voltage Rating: 6.3 V
  • Tolerance: ±20%
  • Height: 0.071" (1.80mm)
  • ESR: 9mOhm
  • Lifetime: 1000 hours @ 105°C
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Package: 2917 (7343 Metric) case
  • Operating Temperature Range: -40°C to 105°C
  • Ripple Current: 3 A @ 100 kHz
