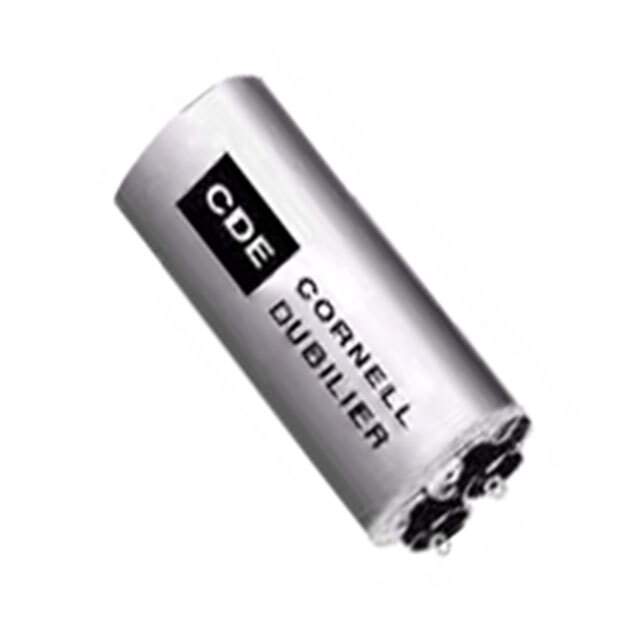

SNU202K105R-F Real Image
Same model may have multiple batches, images only for reference.

SNU202K105R-F

Part No SNU202K105R-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SNU202K105R-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SNU
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 2000Vpk (2KVPK)
Dielectric Material Paper, Metallized
Temperature Range - Operating -50°C ~ 70°C
Mounting Type Chassis Mount
Package / Case Radial, Can
Dimension 2.100" L x 1.810" W (53.34mm x 45.97mm)
Height - Seated (Max) 4.500" (114.30mm)
Termination Solder Lug
Lead Spacing 0.810" (20.57mm)
Applications High Pulse, DV/DT; Snubber
Other Names 2266-SNU202K105R-F
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0040
Win Source Part Number 1302435-SNU202K105R-F
Ultra Librarian 3D Model Ultra Librarian SNU202K105R-F CAD Model

Description

The SNU202K105R-F is a film capacitor from Cornell Dubilier Electronics (CDE) that belongs to the SNU series.

  • Capacitance: 1 µF
  • Tolerance: ±10%
  • Dielectric Material: Paper
  • Construction: Metallized
  • Voltage Rating (AC): 2000Vpk (2KVPK)
  • Applications: High pulse and DV/DT snubber applications
  • Standard Package: 10 units
  • Mounting Type: Chassis Mounted
  • Package/Case: Radial can
  • Operating Temperature Range: -50°C and 70°C
  • Height: 4.500" (114.30mm)
