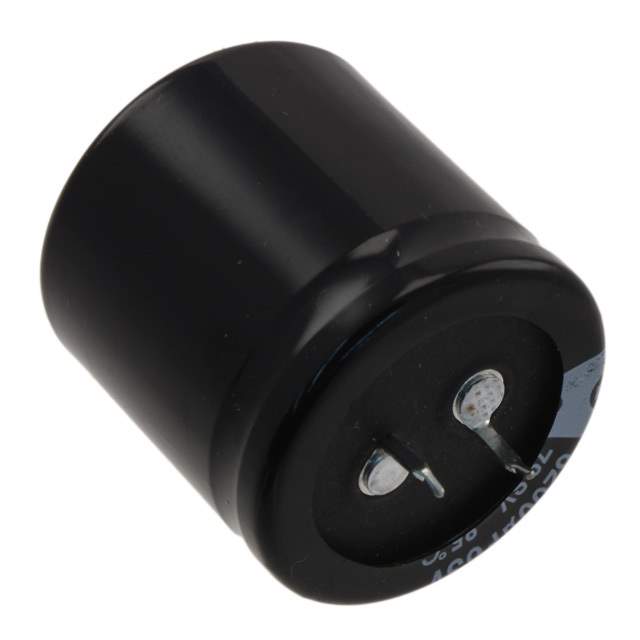

Same model may have multiple batches, images only for reference.

SLPX682M080H7P3

Name: SLPX682M080H7P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307521
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLPX682M080H7P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLPX682M080H7P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLPX
Package	Bulk
Capacitance	6800 µF
Tolerance	±20%
Voltage - Rated	80 V
ESR (Equivalent Series Resistance)	49mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	5.24 A @ 120 Hz
Ripple Current @ High Frequency	6.55 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.575" (40.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Other Names	338-1654,SLPX682M080H7P3
Standard Package	40
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307521-SLPX682M080H7P3
Ultra Librarian 3D Model	Ultra Librarian SLPX682M080H7P3 CAD Model

Description

The SLPX series aluminum electrolytic capacitor by Cornell Dubilier Electronics (CDE) is a polar capacitor ideal for general-purpose applications.

Series: SLPX
Capacitance: 6800 µF
Tolerance: ±20%
Voltage Rating: 80 V
Mounting Type: Through-Hole
ESR: 49mOhm @ 120Hz
Lifetime: 3000 Hrs @ 85°C
Surface Mount Land Size: Not Specified
Package/Case: Radial, can - snap-in
Temperature Range: -40°C ~ 85°C
Dimension: 1.378" Dia (35.00mm)
Alternative Part: 338-1654
