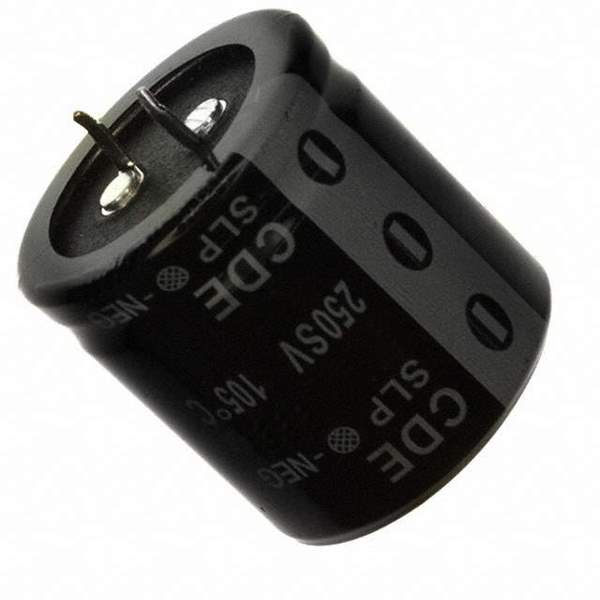

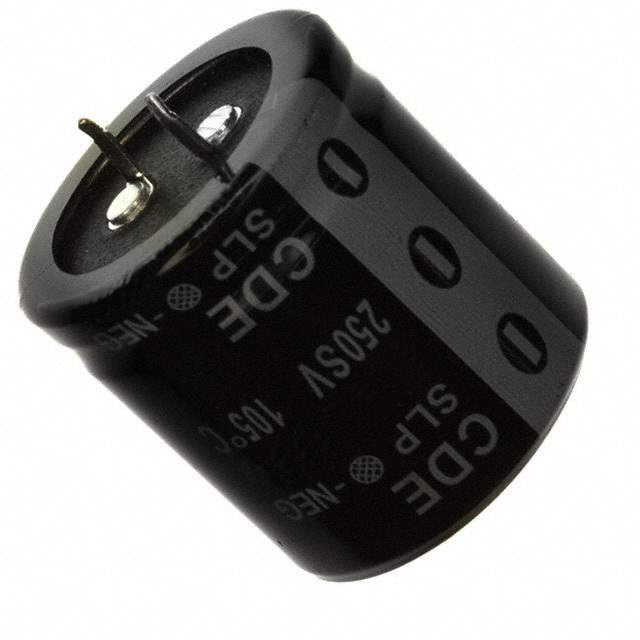

SLP473M010H5P3 Real Image
Same model may have multiple batches, images only for reference.

SLP473M010H5P3

Part No SLP473M010H5P3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SLP473M010H5P3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SLP0712TE (750W)
Package Bulk
Capacitance 47000 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) 16mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 4.2 A @ 120 Hz
Ripple Current @ High Frequency 5.25 A @ 20 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.378" (35.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1307887-SLP473M010H5P3
Ultra Librarian 3D Model Ultra Librarian SLP473M010H5P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLP0712TE (750W) series radial, can-snap-in aluminum electrolytic capacitor is designed for general-purpose applications. With a capacitance of 47000 µF and a voltage rating of 10 V, this polarized capacitor has a tolerance of ±20%.

  • Capacitance: 47000 µF
  • Voltage Rating: 10 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • ESR: 16mOhm @ 120Hz
  • Ripple Current: 4.2 A @ 120 Hz (low frequency) and 5.25 A @ 20 kHz (high frequency)
  • Lifetime: 3000 hours @ 105°C
  • Mounting: Through hole
  • Package/Case: Radial, can-snap-in
  • Dimensions: 1.378" Dia (35.00mm) x 1.378" (35.00mm) height
  • Temperature Range: -40°C to 105°C
