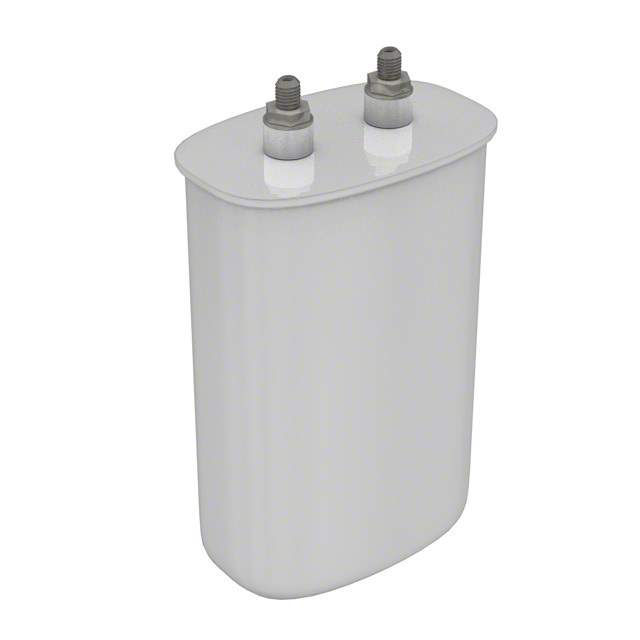

SCRN216R-F Real Image
Same model may have multiple batches, images only for reference.

SCRN216R-F

Part No SCRN216R-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCRN216R-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCR
Package Bulk
Capacitance 20 µF
Tolerance ±10%
Voltage Rating - AC 400Vpk
Dielectric Material Paper, Metallized
Temperature Range - Operating -40°C ~ 80°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip
Height - Seated (Max) 6.310" (160.27mm)
Termination Threaded, Male
Lead Spacing 1.380" (35.05mm)
Applications Commutation; High Frequency, Switching; High Pulse, DV/DT
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1302644-SCRN216R-F
Ultra Librarian 3D Model Ultra Librarian SCRN216R-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCR series capacitor is a film capacitor with a capacitance of 20 µF and a tolerance of ±10%.

  • Capacitance: 20 µF
  • Tolerance: ±10%
  • Application: Designed for commutation, high frequency switching and high pulse, DV/DT applications
  • Voltage Rating: 400Vpk AC
  • Termination: Threaded, male
  • Package: Radial, can
  • Mounting: Requires holder/bracket for chassis mounting
  • Dielectric Material: Paper, metallized
  • Temperature Range: -40°C to 80°C
  • Dimensions: 2.910" L x 1.910" W (73.91mm x 48.51mm) and 6.310" (160.27mm) height
  • Packaging: Available in bulk packaging
  • Standard Package: 100
