Same model may have multiple batches, images only for reference.

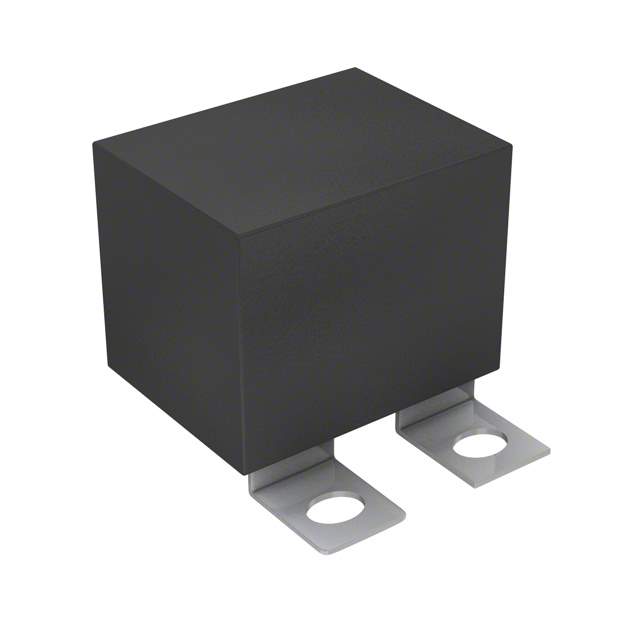

SCD205K102A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD205K102A3Z25-F

Part No SCD205K102A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD205K102A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 2 µF
Tolerance ±10%
Voltage Rating - AC 300V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 4 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.776" L x 1.370" W (45.10mm x 34.80mm)
Height - Seated (Max) 1.402" (35.60mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302663-SCD205K102A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD205K102A3Z25-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD series film capacitor is a reliable and high-quality component for snubber applications.

  • Capacitance: 2 µF
  • Tolerance: ±10%
  • Voltage Rating AC: 300V
  • Voltage Rating DC: 1000V (1kV)
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Chassis Mount
  • Termination: Screw terminals
  • Packaging: Packaged in bulk
  • Mounting: Rectangular box mounting
  • Temperature Range: -55°C to 85°C
  • Dimensions: 1.776" L x 1.370" W (45.10mm x 34.80mm)
