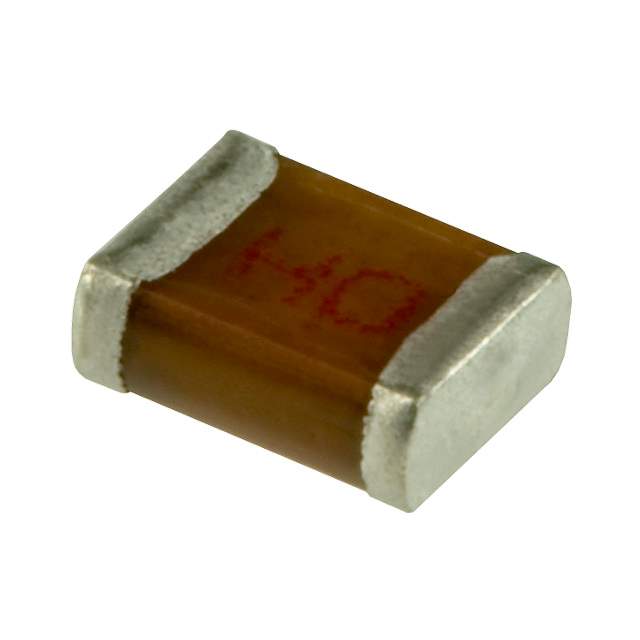

MC08EA220J-TF Real Image
Same model may have multiple batches, images only for reference.

MC08EA220J-TF

Part No MC08EA220J-TF
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 22PF 5% 100V 0805 / 22 pF Mica Capacitor 100 V 0805 (2012 Metric)
Datasheet
MC08EA220J-TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MC
Package Tape & Reel
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 100 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Features RF, High Q, Low Loss
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0020
Other Names 338-MC08EA220J-TFDKR,338-MC08EA220J-TFCT,MC08EA220J-TF-ND,338-MC08EA220J-TFTR
Standard Package 3,000
Win Source Part Number 1148758-MC08EA220J-TF
Ultra Librarian 3D Model Ultra Librarian MC08EA220J-TF CAD Model

Description

The MC08EA220J-TF is a mica and PTFE capacitor with a capacitance of 22 pF and a voltage rating of 100V manufactured by Cornell Dubilier Electronics (CDE).

  • Capacitance: 22 pF
  • Voltage Rating: 100V
  • Tolerance: ±5%
  • Applications: RF, high Q, and low loss applications
  • Mounting: SMD (SMT)
  • Packaging: Tape and reel
  • Standard Package: 3000
  • Material: Mica
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • RoHS Compliant: Yes
  • Operating Temperature: -55°C to 125°C
