Same model may have multiple batches, images only for reference.

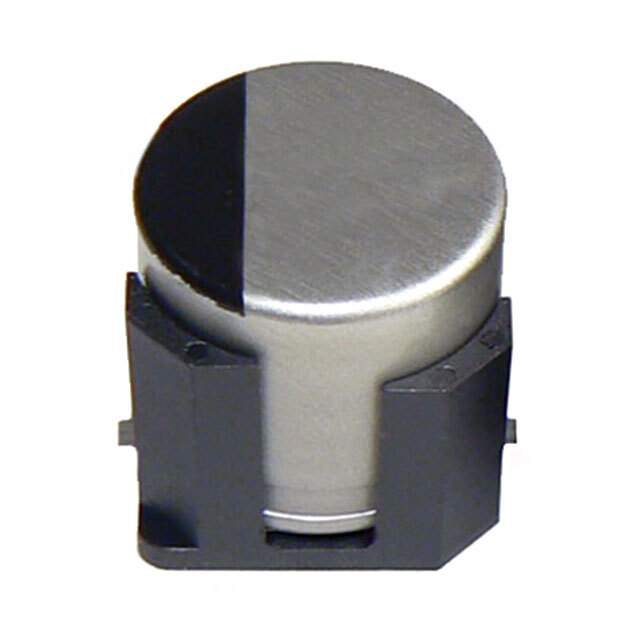

HZA336M063F24VT-F Real Image
Same model may have multiple batches, images only for reference.

HZA336M063F24VT-F

Part No HZA336M063F24VT-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 33UF 63V SMD / 33 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 40mOhm 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series HZA_V
Package Tape & Reel
Type Hybrid
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive, Bypass, Decoupling
Ripple Current @ Low Frequency 170 mA @ 120 Hz
Ripple Current @ High Frequency 1.7 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1341434-HZA336M063F24VT-F
Ultra Librarian 3D Model Ultra Librarian HZA336M063F24VT-F CAD Model

Description

The HZA_V series capacitor from Cornell Dubilier Electronics (CDE) is a radial, can-smd type of aluminum-polymer capacitor with a capacitance of 33 µF and a voltage rating of 63 V.

  • Capacitance: 33 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • ESR: 40mOhm
  • Ripple Current (Low Frequency): 170 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.7 A @ 100 kHz
  • Applications: Automotive, Bypass and Decoupling
  • Lifetime: 10000 hours @ 105°C
  • Package Size/Dimension: 0.315" Dia (8.00mm)
  • Height-Seated (Max): 0.413" (10.50mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 105°C
