Same model may have multiple batches, images only for reference.

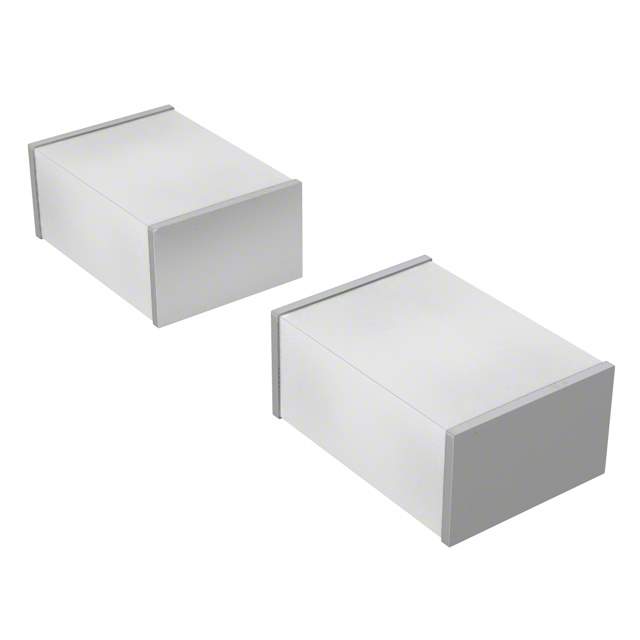

FCN3022A474K-X Real Image
Same model may have multiple batches, images only for reference.

FCN3022A474K-X

Part No FCN3022A474K-X
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 0.47UF 10% 100VDC 3022 / 0.47 µF Film Capacitor 63V 100V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 3022 (7755 Metric)
Datasheet
FCN3022A474K-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series FCN
Package Tape & Reel (TR)
Capacitance 0.47 µF
Tolerance ±10%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 3022 (7755 Metric)
Dimension 0.303" L x 0.217" W (7.70mm x 5.50mm)
Height - Seated (Max) 0.165" (4.19mm)
Termination Solder Pads
Applications General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Standard Package 1,000
Win Source Part Number 967177-FCN3022A474K-X
Ultra Librarian 3D Model Ultra Librarian FCN3022A474K-X CAD Model

Description

The Cornell Dubilier Electronics (CDE) FCN3022A474K-X is a film capacitor that has a capacitance of 0.47 µF and is rated at 63V (AC) and 100V (DC).

  • Product Name: FCN3022A474K-X
  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Capacitance: 0.47 µF
  • Voltage Rating: 63V (AC), 100V (DC)
  • Series: FCN
  • Tolerance: ±10%
  • Mounting Type: Surface Mount
  • Package: Tape & Reel (TR)
  • Package Size: 3022 (7755 Metric)
  • Standard Package: 1000
  • Application: General Purpose
  • Height: 0.165" (4.19mm)
  • Dielectric Material: Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8532.25.0010
