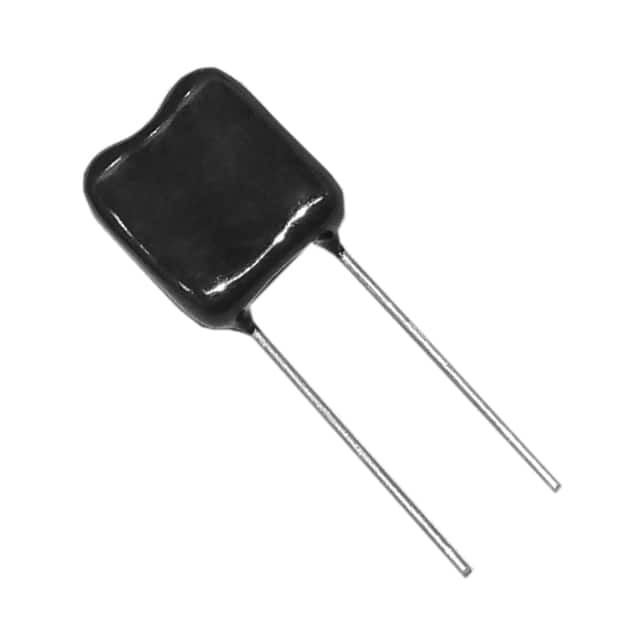

Same model may have multiple batches, images only for reference.
CM05ED270JO3
Same model may have multiple batches, images only for reference.

CM05ED270JO3

Part No CM05ED270JO3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 27PF 500V RADIAL / 27 pF Mica Capacitor 500 V Radial
Datasheet
CM05ED270JO3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CM05
Package Bulk
Product Status Active
Capacitance 27 pF
Tolerance ±5%
Voltage - Rated 500 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Lead Spacing 0.232" (5.90mm)
Features General Purpose
Size / Dimension 0.449" L x 0.169" W (11.40mm x 4.30mm)
Height - Seated (Max) 0.358" (9.10mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.29.0020
California Prop 65 Warning Information
Win Source Part Number 915539-CM05ED270JO3
Ultra Librarian 3D Model Ultra Librarian CM05ED270JO3 CAD Model

Description

The 915539-CM05ED270JO3 is a mica and PTFE capacitor from the CM05 series by Cornell Dubilier Electronics (CDE).

  • Capacitor Type: Mica and PTFE Capacitor
  • Series: CM05
  • Application: General Purpose
  • Capacitance: 27 pF
  • Voltage Rating: 500V
  • Mounting Type: Through Hole
  • Package: Radial
  • Temperature Range: -55°C to 125°C
  • Size (L x W): 0.449" L x 0.169" W (11.40mm x 4.30mm)
  • Seated Height: 0.358" (9.10mm)
  • Tolerance: ±5%
  • Status: Active
  • Manufacturer: Cornell Dubilier Electronics (CDE)
