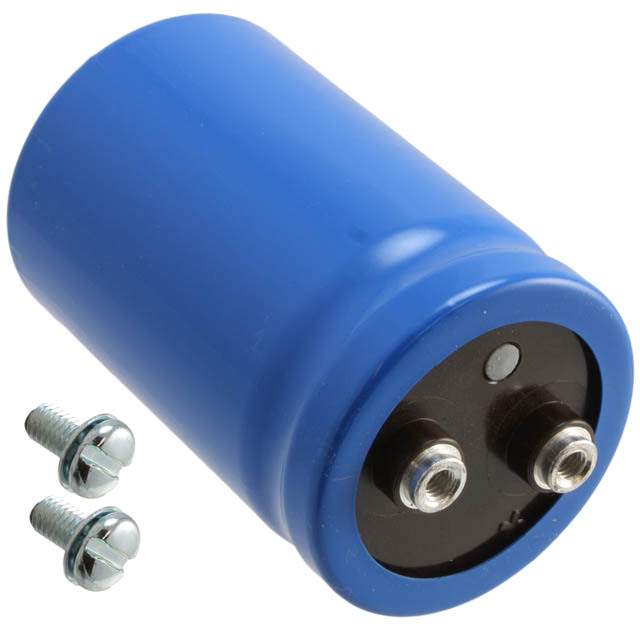

Same model may have multiple batches, images only for reference.

CGS272T200V4C

Name: CGS272T200V4C
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1089856
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CGS272T200V4C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 2700UF 200V SCREW / 2700 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 48mOhm @ 120Hz 2000 Hrs @ 85°C
Datasheet	CGS272T200V4C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	CGS
Package	Bulk
Capacitance	2700 µF
Tolerance	-10%, +50%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	48mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	6.4 A @ 120 Hz
Ripple Current @ High Frequency	9.6 A @ 10 kHz
Dimension	2.000" Dia (50.80mm)
Height - Seated (Max)	4.125" (104.78mm)
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8532.22.0055
Other Names	2266-CGS272T200V4C,338-4270,CGS272T200V4C-ND
Standard Package	1
Win Source Part Number	1089856-CGS272T200V4C
Ultra Librarian 3D Model	Ultra Librarian CGS272T200V4C CAD Model

Description

The CGS272T200V4C capacitor from Cornell Dubilier Electronics (CDE) is a radial, can-screw terminal aluminum electrolytic capacitor.

Capacitance: 2700 µF
Capacitance Tolerance: -10%, +50%
Voltage Rating: 200 V
Polarization: Polar
ESR: 48mOhm @ 120Hz
Lifetime: 2000 Hrs @ 85°C
Application: General-purpose
Ripple Current (Low Frequency): 6.4 A @ 120 Hz
Ripple Current (High Frequency): 9.6 A @ 10 kHz
Diameter: 2.000" (50.80mm)
Mounting: Chassis mounted
