Same model may have multiple batches, images only for reference.

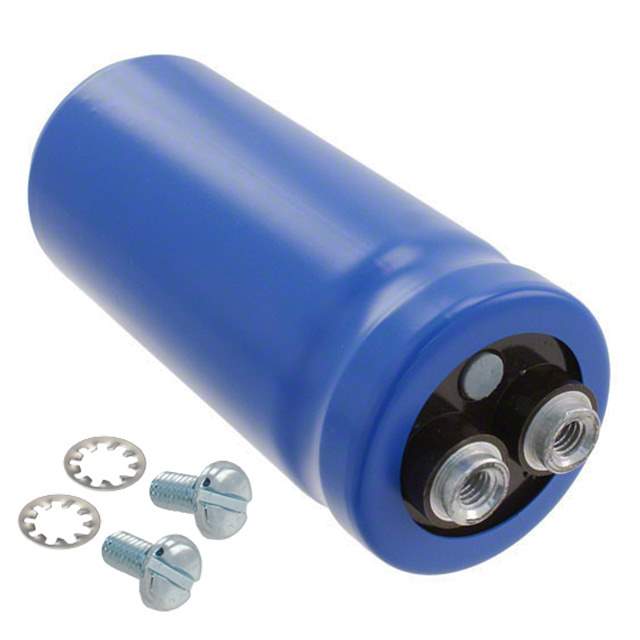

CGS204U7R5R5L Real Image
Same model may have multiple batches, images only for reference.

CGS204U7R5R5L

Part No CGS204U7R5R5L
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 200000UF 7.5V SCREW
Datasheet
CGS204U7R5R5L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Status Active
Capacitance 200000μF
Tolerance -10%, +75%
Voltage Rating 7.5V
ESR 12 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 10.8A @ 120Hz
Ripple Current - High Frequency 14.04A @ 10kHz
Height - Seated (Max) 5.625" (142.88mm)
Mounting Chassis Mount
Dimension Radial, Can - Screw Terminals
Win Source Part Number 1041884-CGS204U7R5R5L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CGS204U7R5R5L CAD Model

Description

The Cornell Dubilier Electronics (CDE) CGS204U7R5R5L is a 200000μF, 7.5V, polarized capacitor designed for use in general-purpose applications.

  • Capacitance: 200000μF
  • Voltage: 7.5V
  • Polarized: Yes
  • Application: General-purpose
  • Height: 5.625"
  • Mounting: Chassis
  • Tolerance: -10% to +75%
  • Ripple Current: 10.8A @ 120Hz and 14.04A @ 10kHz
  • ESR: 12 mOhm @ 120Hz
  • Lifetime: 2000 hours @ 85°C
  • Package: Radial, can-screw terminal
  • Operating Temperature: -40°C to 85°C
