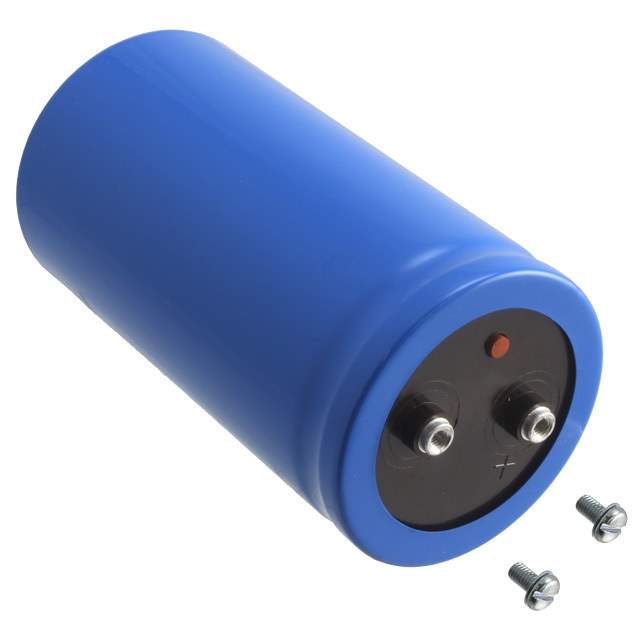

CGS184U025X4C Real Image
Same model may have multiple batches, images only for reference.

CGS184U025X4C

Part No CGS184U025X4C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 180000UF 25V SCREW / Cap Aluminum Lytic 0.18F 25V -10% to 75% (76.2 X 104.78mm) Screw Terminal 0.004 Ohm 30300mA 2000h 85°C
Datasheet
CGS184U025X4C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 180000μF
Tolerance -10%, +75%
Voltage Rating DC 25V
ESR (Equivalent Series Resistance) 4 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 30.3A @ 120Hz
Ripple Current - High Frequency 39.39A @ 10kHz
Dimension 3.000" Dia (76.20mm)
Height - Seated (Maximum) 4.125" (104.78mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 775489-CGS184U025X4C
Popularity Medium
Supply and Demand Status Limited
Family Name CGS
Introduction Date August 30, 2005
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS184U025X4C CAD Model

Description

The Cornell Dubilier Electronics (CDE) CGS series capacitor is a chassis mount radial component with a capacitance of 180000μF.

  • Capacitance: 180000μF
  • Voltage Rating DC: 25V
  • ESR (Equivalent Series Resistance): 4 mOhm @ 120Hz
  • Ripple Current: 30.3A @ 120Hz, 39.39A @ 10kHz
  • Lifetime: 2000 Hrs @ 85°C
  • Tolerance: -10%, +75%
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Bulk
