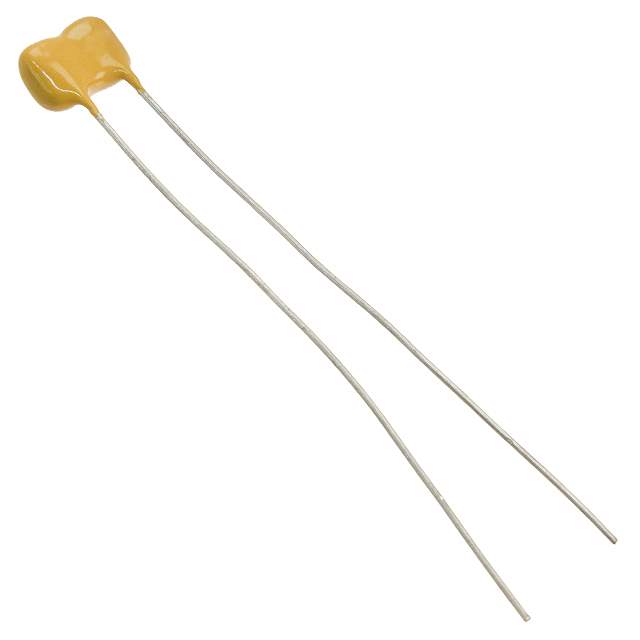

CD5EC470JO3F Real Image
Same model may have multiple batches, images only for reference.

CD5EC470JO3F

Part No CD5EC470JO3F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 47PF 5% 300V RADIAL / 47 pF Mica Capacitor 300 V Radial
Datasheet
CD5EC470JO3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CD5
Package Bulk
Capacitance 47 pF
Tolerance ±5%
Voltage - Rated 300 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Lead Spacing 0.118" (3.00mm)
Features General Purpose
Size / Dimension 0.272" L x 0.142" W (6.90mm x 3.60mm)
Height - Seated (Max) 0.209" (5.30mm)
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Win Source Part Number 1340490-CD5EC470JO3F
Ultra Librarian 3D Model Ultra Librarian CD5EC470JO3F CAD Model

Description

The Cornell Dubilier Electronics (CDE) CD5 series capacitor is a general-purpose capacitor with a capacitance of 47 pF and a voltage rating of 300 V. Cornell Dubilier Electronics (CDE).

  • Series: CD5
  • Application: General Purpose
  • Capacitance: 47 pF
  • Voltage Rating: 300 V
  • Tolerance: ±5%
  • Dielectric Material: Mica
  • Mounting Type: Through Hole
  • Package: Radial
  • Lead Spacing: 0.118" (3.00mm)
  • Size: 0.272" L x 0.142" W (6.90mm x 3.60mm)
  • Height (Seated): 0.209" (5.30mm)
  • Operating Temperature: -55°C ~ 125°C
  • Packaging: Bulk
  • Standard Package: 100
