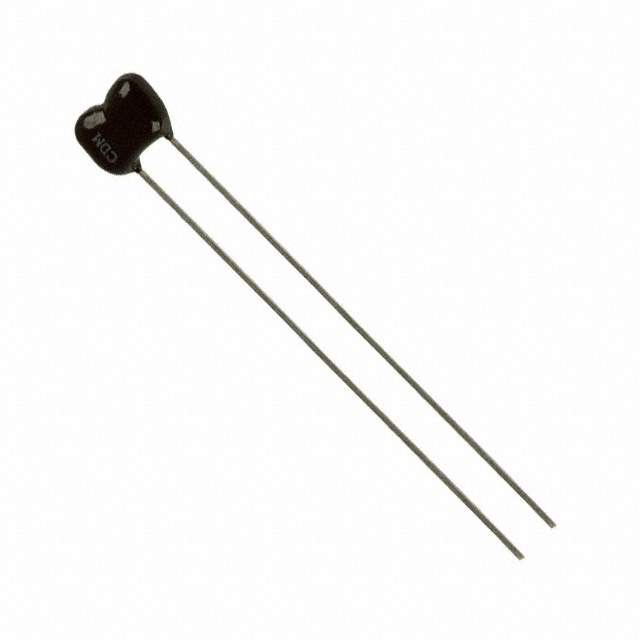

CD4ED360JO3F Real Image
Same model may have multiple batches, images only for reference.

CD4ED360JO3F

Part No CD4ED360JO3F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 36PF 5% 500V RADIAL / Cap Mica 36pF 500V 5% (7.4 X 2.8 X 5.6mm) Radial 2.5mm 125°C
Datasheet
CD4ED360JO3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CD4
Packaging Bulk
Capacitance 36pF
Tolerance ±5%
Voltage Rating DC 500V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package Radial
Lead Spacing 0.098" (2.50mm)
Features RF, High Frequency
Dimension 0.291" L x 0.110" W (7.40mm x 2.80mm)
Height - Seated (Maximum) 0.220" (5.60mm)
Win Source Part Number 777743-CD4ED360JO3F
Popularity Medium
Supply and Demand Status Limited
Family Name CD4
Introduction Date March 12, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian CD4ED360JO3F CAD Model

Description

The Cornell Dubilier Electronics (CDE) CD4 series is a range of mica capacitors designed for RF and high frequency applications.

  • Capacitance: 36pF
  • Voltage Rating: 500V
  • Tolerance: ±5%
  • Operating Temperature Range: -55°C to 125°C
  • Mounting: Through-hole
  • Dimensions: 0.291" L x 0.110" W (7.40mm x 2.80mm) x 0.220" (5.60mm)
  • Package: Radial

The Cornell Dubilier Electronics (CDE) CD4 series capacitor is supplied in limited quantities.
