Same model may have multiple batches, images only for reference.

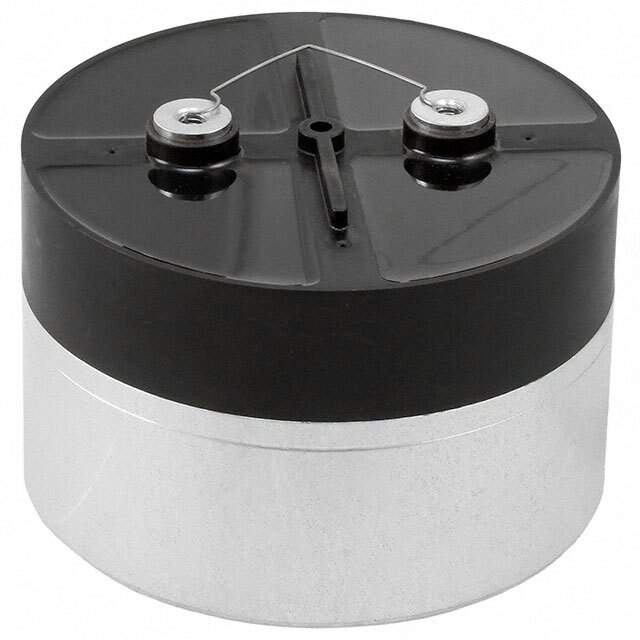

947D601K901DCRSN Real Image
Same model may have multiple batches, images only for reference.

947D601K901DCRSN

Part No 947D601K901DCRSN
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 600UF 10% 900VDC RADIAL / 600 µF Film Capacitor 230V 900V Polypropylene (PP), Metallized Radial, Can
Datasheet
947D601K901DCRSN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series 947D
Package Bulk
Capacitance 600 µF
Tolerance ±10%
Voltage Rating - AC 230V
Voltage Rating - DC 900V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 0.9 mOhms
Temperature Range - Operating -45°C ~ 85°C
Mounting Type Chassis, Stud Mount
Package / Case Radial, Can
Size / Dimension 4.567" Dia (116.00mm)
Height - Seated (Max) 2.992" (76.00mm)
Termination Threaded, Female
Lead Spacing 1.969" (50.00mm)
Applications DC Link, DC Filtering
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1338555-947D601K901DCRSN
Ultra Librarian 3D Model Ultra Librarian 947D601K901DCRSN CAD Model

Description

The Cornell Dubilier Electronics (CDE) 947D601K901DCRSN capacitor is a film capacitor with a capacitance of 600 µF and voltage rating of 900V (DC) and 230V (AC).

  • Capacitance: 600 µF
  • Voltage Rating: 900V (DC) and 230V (AC)
  • Tolerance: ±10%
  • ESR: 0.9 mOhms
  • Lifetime: Not Specified
  • Mounting Type: Chassis, Stud Mount
  • Package: Radial, Can
  • Height: 2.992'' (76.00mm)
  • Lead Spacing: 1.969'' (50.00mm)
  • Operating Temperature: -45°C to 85°C
