Same model may have multiple batches, images only for reference.

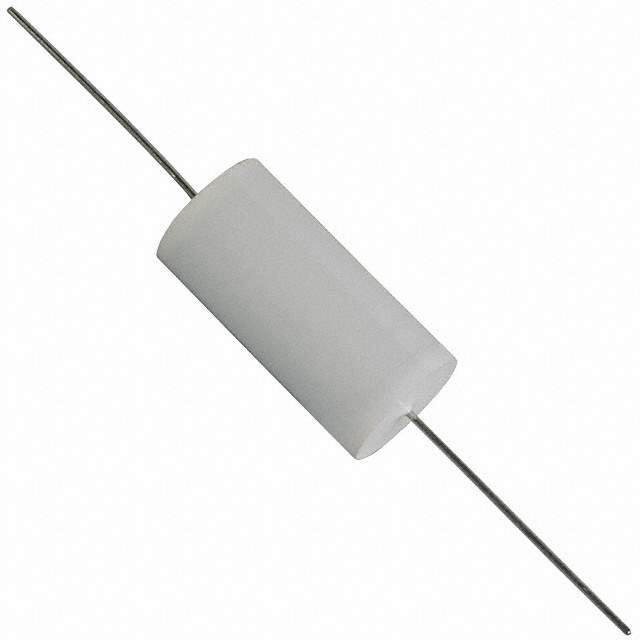

940C20W1K-F Real Image
Same model may have multiple batches, images only for reference.

940C20W1K-F

Part No 940C20W1K-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 1UF 10% 2KVDC AXIAL / 1 µF Film Capacitor 500V 2000V (2kV) Polypropylene (PP), Metallized Axial
Datasheet
940C20W1K-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series 940C
Package Bulk
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 5 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Axial
Dimension 1.614" Dia x 2.126" L (41.00mm x 54.00mm)
Termination PC Pins
Applications High Pulse, DV/DT
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0060
Other Names 338-1182,940C20W1KF
Standard Package 25
Win Source Part Number 1041724-940C20W1K-F
Ultra Librarian 3D Model Ultra Librarian 940C20W1K-F CAD Model

Description

The 940C series film capacitor from Cornell Dubilier Electronics (CDE) is a high-quality capacitor designed for high pulse and DV/DT applications.

  • Capacitance: 1 µF
  • Tolerance: ±10%
  • Voltage Rating (AC): Up to 500V
  • Voltage Rating (DC): Up to 2000V (2kV)
  • Temperature Range: -55°C to 105°C
  • ESR (Equivalent Series Resistance): 5 mOhms
  • Dielectric Material: Polypropylene (PP), metallized
  • Mounting: Through-hole with PC pins
  • Package/Case: 1.614" Dia x 2.126" L (41.00mm x 54.00mm)
  • Packaging: Bulk
  • Standard Package: 25
