Same model may have multiple batches, images only for reference.

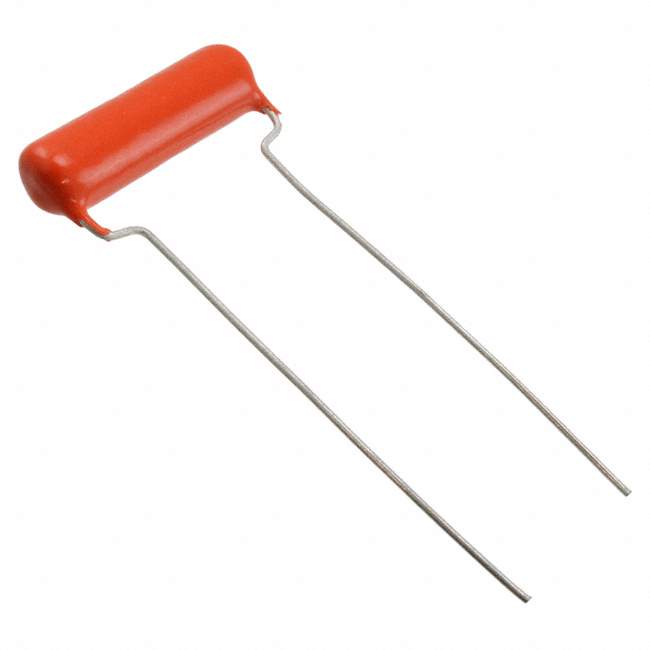

715P222516LD3 Real Image
Same model may have multiple batches, images only for reference.

715P222516LD3

Part No 715P222516LD3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 2200PF 5% 1.6KVDC RAD / 2200 pF Film Capacitor 500V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
Datasheet
715P222516LD3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series Orange Drop® 715P
Package Bulk
Capacitance 2200 pF
Tolerance ±5%
Voltage Rating - AC 500V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.350" Dia x 1.252" L (8.90mm x 31.80mm)
Height - Seated (Max) 0.642" (16.30mm)
Termination PC Pins
Lead Spacing 0.720" (18.30mm)
Applications Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names 338-3453
Standard Package 100
Win Source Part Number 1210487-715P222516LD3
Ultra Librarian 3D Model Ultra Librarian 715P222516LD3 CAD Model

Description

The 1210487-715P222516LD3 is a Film Capacitor from Cornell Dubilier Electronics (CDE).

  • Series: Orange Drop® 715P
  • Packaging: Bulk
  • Capacitance: 2200 pF
  • Voltage Rating: 500V AC, 1600V DC
  • Applications: Audio, High Frequency, Switching, High Pulse, DV/DT, Snubber
  • Height: 0.642" (16.30mm)
  • Standard Package: 100
  • Tolerance: ±5%
  • Lead Spacing: 0.720" (18.30mm)
  • Mounting Type: Through Hole
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8532.25.0070
