Same model may have multiple batches, images only for reference.

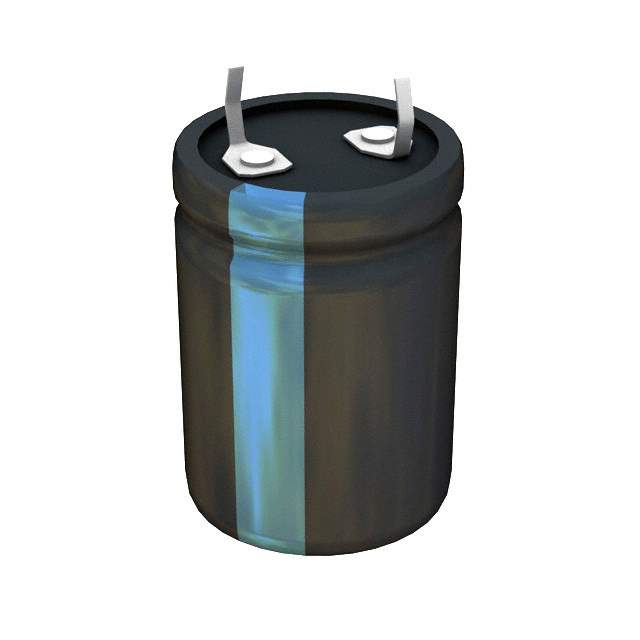

380LX562M035H022 Real Image
Same model may have multiple batches, images only for reference.

380LX562M035H022

Part No 380LX562M035H022
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 5600UF 20% 35V SNAP / Cap Aluminum Lytic 5600uF 35V 20% (22 X 30mm) Snap-In 10mm 0.083 Ohm 3400mA 3000h 85°C
Datasheet
380LX562M035H022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series 380LX
Packaging Bulk
Capacitance 5600μF
Tolerance ±20%
Voltage Rating DC 35V
ESR (Equivalent Series Resistance) 83 mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 3.4A @ 120Hz
Ripple Current - High Frequency 3.9A @ 20kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.866" Dia (22.00mm)
Height - Seated (Maximum) 1.260" (32.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 777733-380LX562M035H022
Popularity Medium
Supply and Demand Status Limited
Family Name 380LX
Introduction Date September 12, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 380LX562M035H022 CAD Model

Description

The Cornell Dubilier Electronics (CDE) 380LX series capacitor is a polarized radial, can-snap-in capacitor that has a capacitance of 5600μF with a voltage rating of 35V.

  • Capacitance: 5600μF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • ESR: 83 mOhm @ 120Hz
  • Ripple Current: 3.4A @ 120Hz, 3.9A @ 20kHz
  • Lifetime: 3000 Hrs @ 85°C
  • Mounting Type: Snap-in
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Height: 1.260" (32.00mm)
  • Diameter: 0.866" (22.00mm)
  • Country of Origin: United States of America
  • Estimated EOL Date: 2027
