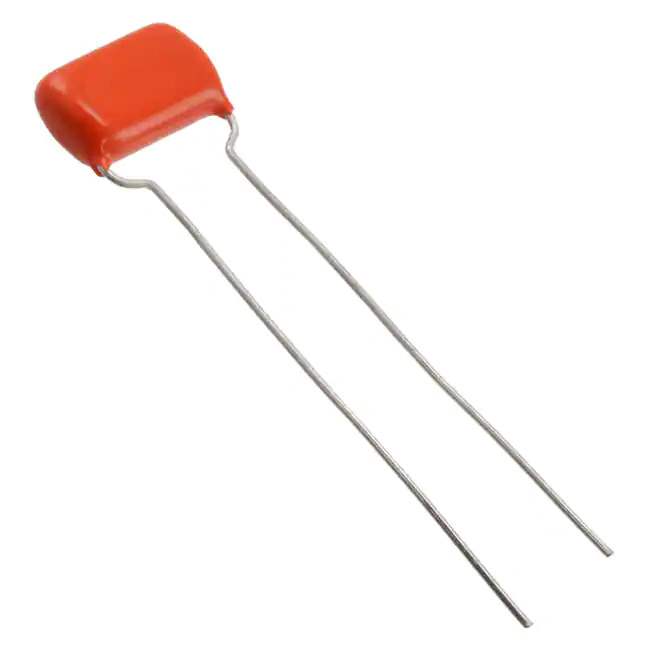

225P47392XD3 Real Image
Same model may have multiple batches, images only for reference.

225P47392XD3

Part No 225P47392XD3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 0.047UF 10% 200VDC RAD
Datasheet
225P47392XD3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series Orange Drop® 225P
Package Bulk
Product Status Active
Capacitance 0.047 µF
Tolerance ±10%
Voltage Rating - AC 140V
Voltage Rating - DC 200V
Dielectric Material Polyester
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.799" L x 0.280" W (20.30mm x 7.10mm)
Height - Seated (Max) 0.610" (15.50mm)
Termination PC Pins
Lead Spacing 0.375" (9.52mm)
Applications Audio; DC Link, DC Filtering
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 854630-225P47392XD3
Ultra Librarian 3D Model Ultra Librarian 225P47392XD3 CAD Model

Description

The 854630-225P47392XD3 is a film capacitor from the Orange Drop® 225P series. It is manufactured by Cornell Dubilier Electronics (CDE) and is currently in active production.

  • Application: Audio and DC Link
  • Termination: PC Pins
  • Package: Bulk
  • Voltage Rating: 140V AC and 200V DC
  • Capacitance: 0.047 µF
  • Tolerance: ±10%
  • Dielectric Material: Polyester
  • Mounting Type: Through-Hole
  • Size: 0.799" L x 0.280" W (20.30mm x 7.10mm)
  • Seated Height: 0.610" (15.50mm)
