Same model may have multiple batches, images only for reference.

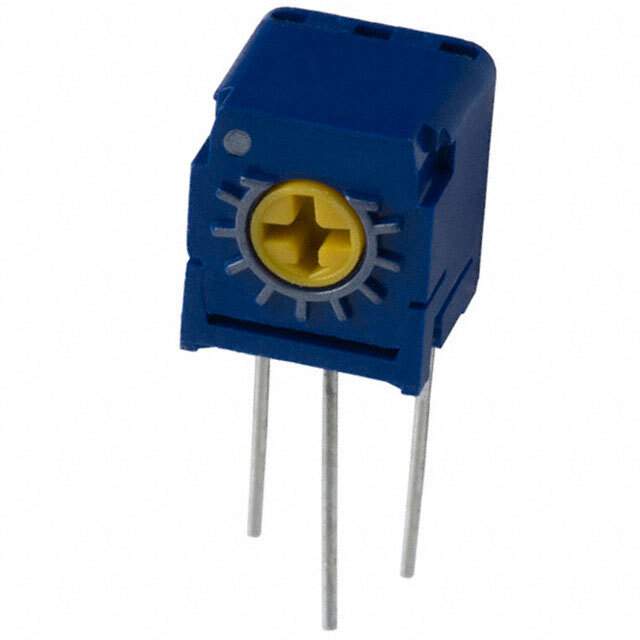

CT6ES501 Real Image
Same model may have multiple batches, images only for reference.

CT6ES501

Part No CT6ES501
Manufacturer Copal Electronics Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 0.5W TH / Res Cermet Trimmer 500 Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 2.6mm (7 X 7 X 8.2mm) Pin Thru-Hole Bulk
Datasheet
CT6ES501 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Copal Electronics Inc.
Series CT6
Packaging Bulk
Resistance (Ohms) 500
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.323" x 0.276" Face x 0.276" L (8.20mm x 7.00mm x 7.00mm)
Win Source Part Number 771922-CT6ES501
Popularity Medium
Supply and Demand Status Limited
Family Name CT-6
Introduction Date October 18, 2004
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CT6ES501 CAD Model

Description

The Copal Electronics Inc. 771922-CT6ES501 is a potentiometer that belongs to the CT-6 family.

  • Resistance: 500 ohms
  • Power Rating: 0.5W or 1/2W
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
  • Mounting: Through Hole
  • Termination Style: PC Pin
  • Win Source Part Number: 771922-CT6ES501
