Same model may have multiple batches, images only for reference.

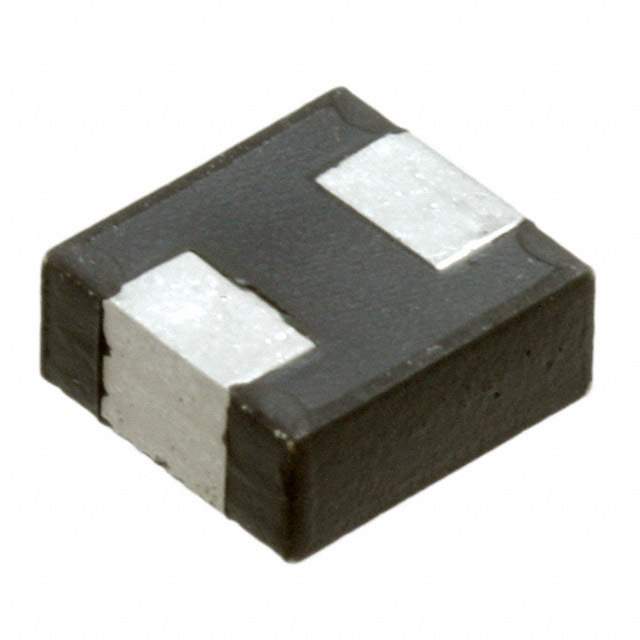

MPI4040R4-4R7-R Real Image
Same model may have multiple batches, images only for reference.

MPI4040R4-4R7-R

Part No MPI4040R4-4R7-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.9A 67 MOHM SMD / High current, high frequency, miniature power inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Metal Composite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 2.9A
Current - Saturation 3.9A
Shielding Shielded
DC Resistance (DCR) 67mOhm
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 1816 (4540 Metric)
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801199-MPI4040R4-4R7-R
Ultra Librarian 3D Model Ultra Librarian MPI4040R4-4R7-R CAD Model

Description

The MPI4040R4-4R7-R is a wirewound inductor manufactured by Eaton - Electronics Division.

  • Shielding: Shielded
  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Current Saturation: 3.9A
  • DC Resistance (DCR): 67mOhm
  • Operating Temperature: -55°C to 125°C
  • Popularity: High
  • Supply and Demand Status: Sufficient
