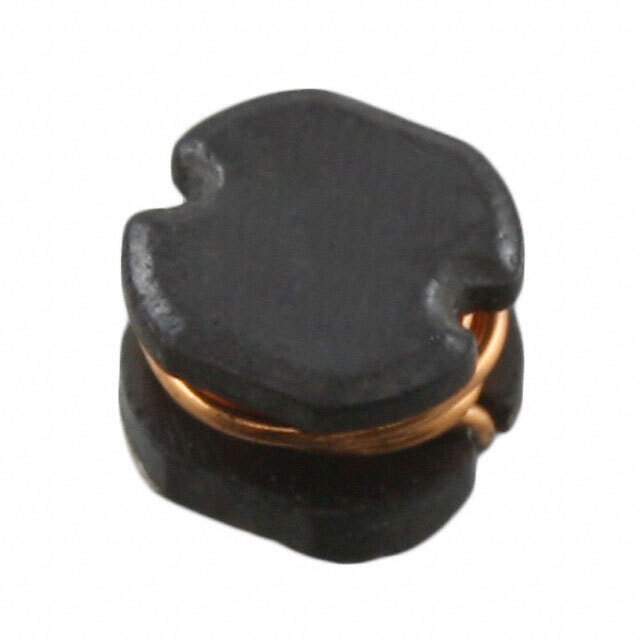

The LD1-1R4-R is a power inductor manufactured by Cooper Bussmann, Inc. Designed for use in various power supply applications, this inductor is characterized by its low DC resistance and high saturation current, making it suitable for applications requiring efficient energy storage and filtering. Its compact design allows for high-density mounting on printed circuit boards.

Applications:

• DC-DC Converters
• Power Supplies
• Buck Regulators
• Boost Regulators
• Filtering Applications

Features:

• Low DC Resistance
• High Saturation Current
• Compact Size
• Surface Mountable
• Shielded Construction
• RoHS Compliant

Benefits:

• Efficient Energy Storage
• Reduced Power Losses
• High Current Handling Capability
• Space-Saving Design
• Minimized EMI Interference
• Environmentally Friendly

Additional Details:

The LD1-1R4-R has an inductance value of 1.4 μH and a saturation current rating that makes it appropriate for use in high-current power supply circuits. The low DC resistance minimizes power dissipation and improves overall efficiency. The shielded construction reduces electromagnetic interference, allowing for quieter operation and simplifying compliance with EMC regulations. The surface-mountable package is designed for automated assembly, ensuring ease of manufacturing. This inductor is suitable for a wide range of power supply and filtering applications requiring compact size and high performance.
