Same model may have multiple batches, images only for reference.

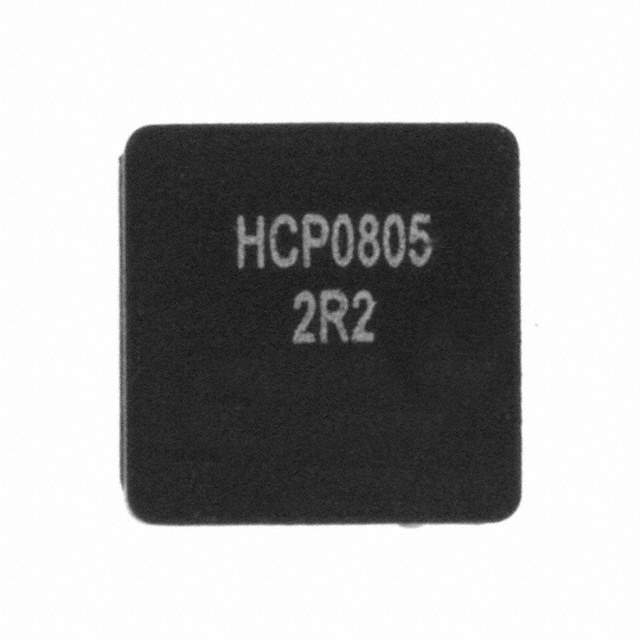

HCP0805-2R2-R Real Image
Same model may have multiple batches, images only for reference.

HCP0805-2R2-R

Part No HCP0805-2R2-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description High Current, High Frequency, Power Inductors | FIXED IND 2.2UH 10A 11.2 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Iron Powder
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 10A
Current - Saturation 14A
Shielding Shielded
DC Resistance (DCR) 11.2mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.303" L x 0.291" W (7.70mm x 7.40mm)
Height - Seated (Maximum) 0.197"
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1179008-HCP0805-2R2-R
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HCP0805-2R2-R CAD Model

Description

The 1179008-HCP0805-2R2-R is a wirewound type shielded inductor manufactured by Eaton - Electronics Division. 1179008-HCP0805-2R2-R manufactured by Eaton - Electronics Division.

  • Type: Wirewound, shielded
  • Mounting Type: SMD
  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Current Saturation: 14A
  • DC Resistance: 11.2mOhm
  • Temperature Range: -40°C to 125°C
  • Height: 0.197"
  • Dimensions: 0.303" L x 0.291" W (7.70mm x 7.40mm)
