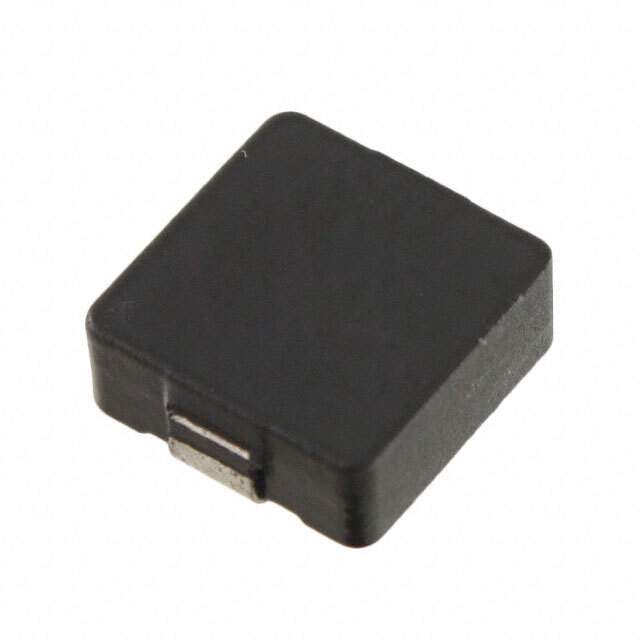

HCM1305-1R5-R Real Image
Same model may have multiple batches, images only for reference.

HCM1305-1R5-R

Part No HCM1305-1R5-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description High Current Power Inductors | FIXED IND 1.5UH 23A 3.16 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Tape and Reel
Type Wirewound
Material - Core Iron Powder
Inductance 1.5μH
Tolerance ±20%
Current Rating (Amps) 23A
Current - Saturation 48A
Shielding Shielded
DC Resistance (DCR) 3.16mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Maximum) 0.197"
Manufacturer Pack Quantity 400
MSL Level 1 (Unlimited)
Win Source Part Number 1178970-HCM1305-1R5-R
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HCM1305-1R5-R CAD Model

Description

The Eaton - Electronics Division HCM1305-1R5-R is a limited supply electronic component that is manufactured by Eaton - Electronics Division.

  • RoHS State: not provided in the specifications
  • Designed for: inductors, coils, and chokes
  • Product Dimensions: 0.524" L x 0.480" W (13.30mm x 12.20mm)
  • Height-Seated (Maximum): 0.197"
  • Current Rating (Amps): 23A
  • Inductance Frequency-Test: 100kHz
