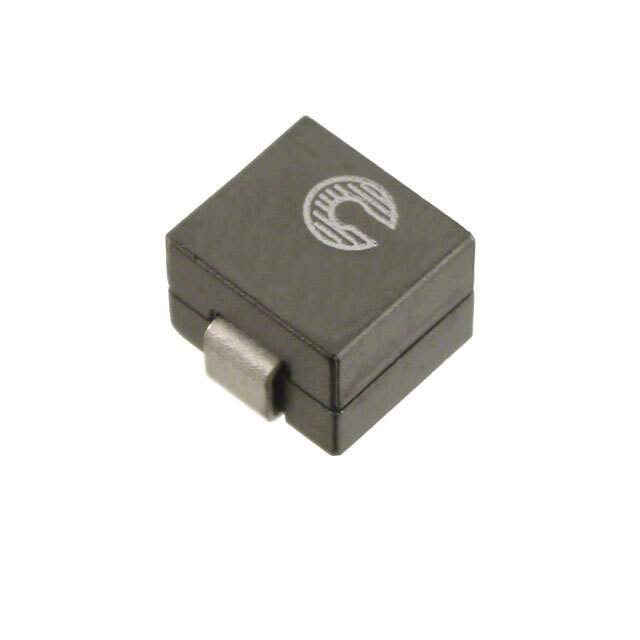

The FP0705R2-R10 is a ferrite chip inductor from Cooper Bussmann (now Eaton). It is designed for use in various electronic circuits for filtering, impedance matching, and RF signal processing.

Applications

• RF circuits
• EMI filtering
• DC-DC converters
• Wireless communication devices
• Mobile phones

Features

• Ferrite core
• Surface mount package
• Small size
• High Q factor
• Low DC resistance
• RoHS compliant

Benefits

• Effective EMI suppression due to high impedance
• Improved signal integrity due to high Q factor
• Efficient power conversion in DC-DC converters
• Reduced board space requirements due to small size
• Easy integration into automated assembly processes

Additional Details

The FP0705R2-R10 has an inductance value of 0.1 µH with a tolerance of ±20%. The "R10" designation indicates 0.1 microhenry. Its small size allows for high-density circuit designs. The high Q factor minimizes losses and improves the performance of tuned circuits. The low DC resistance minimizes power dissipation. It is often used for impedance matching in RF circuits and for filtering out unwanted noise. The component’s ferrite core provides good performance at high frequencies. The device adheres to RoHS standards.
