Same model may have multiple batches, images only for reference.

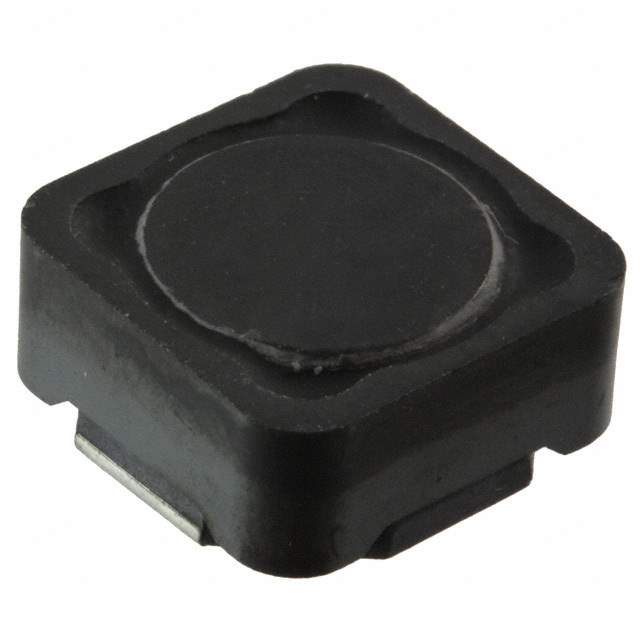

DRA125-101-R Real Image
Same model may have multiple batches, images only for reference.

DRA125-101-R

Part No DRA125-101-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 1.745A 178 MOHM / High Power Density, High Efficiency, Shielded Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Inductance 100μH
Tolerance ±20%
Current Rating (Amps) 1.745A
Current - Saturation 2.213A
Shielding Shielded
DC Resistance (DCR) 178mOhm
Temperature Range - Operating -40°C ~ 165°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809773-DRA125-101-R
Ultra Librarian 3D Model Ultra Librarian DRA125-101-R CAD Model

Description

The Eaton - Electronics Division 809773-DRA125-101-R is a reel-mounted wirewound inductor that features a shielded design. With an inductance of 100μH and a tolerance of ±20%, this inductor can handle a current saturation of up to 2.213A.

  • Category: Inductors, Coils, Chokes
  • Popularity: Medium
  • Temperature Range: -40°C ~ 165°C
  • Height: 0.236" (6.00mm)
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Current Rating: 1.745A
  • Inductance Frequency-Test: 100kHz
