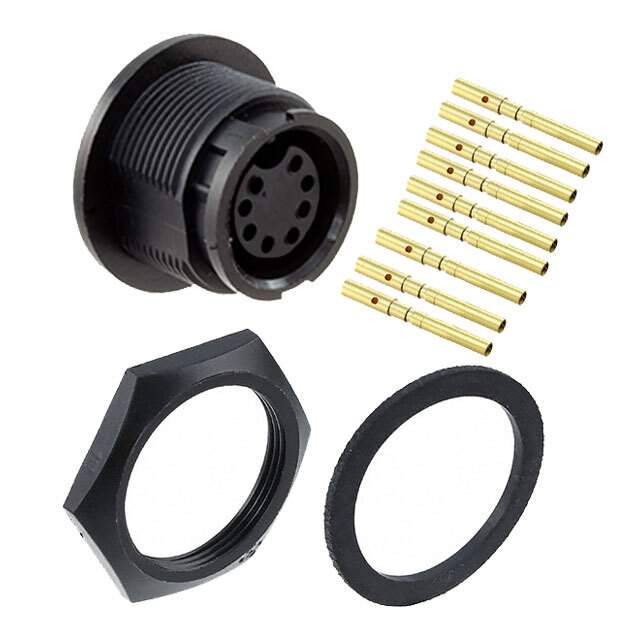

4280-9SG-300 Real Image
Same model may have multiple batches, images only for reference.

4280-9SG-300

Part No 4280-9SG-300
Manufacturer Conxall/Switchcraft
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 9POS GOLD CRIMP / 9 Position Circular Connector Receptacle, Female Sockets Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Conxall/Switchcraft
Series Multi-Con-X®
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 9
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Termination Crimp
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Polyamide (PA) , Nylon
Contact Finish - Mating Gold
Color Black
Ingress Protection Weathertight
Shielding Unshielded
Current Rating (Amps) 5.6A
Voltage Rating 600V
Temperature Range - Operating -40°C ~ 115°C
Contact Material Brass
Base Product Number 4280-9S
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1348696-4280-9SG-300
Ultra Librarian 3D Model Ultra Librarian 4280-9SG-300 CAD Model

Description

The 4280-9SG-300 is a circular connector assembly from Conxall/Switchcraft used in circular connectors.

  • Positions: 9
  • Color: Black
  • Connector Type: Receptacle with female sockets
  • Termination: Crimped
  • Fastening Type: Bayonet lock
  • Package: Bulk
  • Contact Material: Brass
  • Voltage Rating: 600V
  • Weathertight: Yes
  • Shielded: Unshielded
  • Current Rating: 5.6A
  • Mounting: Panel mounted
  • Temperature Range: -40°C ~ 115°C
  • Shell Material: Polyamide (PA)
  • Base Product Number: 4280-9S
