Same model may have multiple batches, images only for reference.

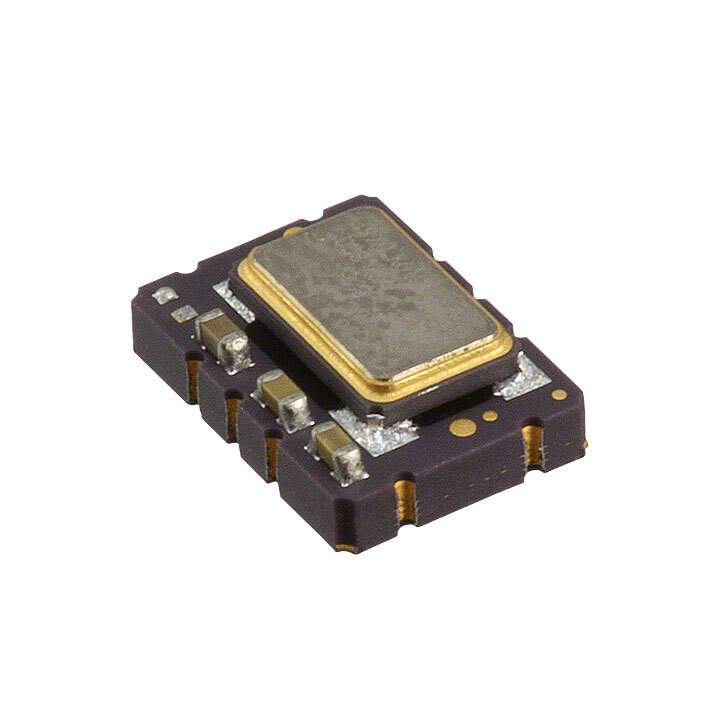

DV75C-010.0M Real Image
Same model may have multiple batches, images only for reference.

DV75C-010.0M

Part No DV75C-010.0M
Manufacturer Connor-Winfield Corporation
Catalog Oscillators
Description XTAL OSC TCXO 10.0000MHZ LVCMOS / 10 MHz TCXO LVCMOS Oscillator 3.3V 4-SMD, No Lead
Datasheet
DV75C-010.0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Connor Winfield
Series DV75C
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 10 MHz
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±280ppb
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.094" (2.40mm)
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349202-DV75C-010.0M
Ultra Librarian 3D Model Ultra Librarian DV75C-010.0M CAD Model

Description

The DV75C TCXO oscillator is an electronic component that falls under the category of crystals, oscillators, and resonators. Connor Winfield manufactures it.

  • Series: DV75C
  • Package: 4-SMD, No Lead
  • Dimensions: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height: 0.094" (2.40mm)
  • Frequency: 10 MHz
  • Output: LVCMOS
  • Frequency Stability: ±280ppb
  • Supply Current (Max): 6mA
  • Voltage: 3.3V
  • Operating Temperature: -40°C to 85°C
