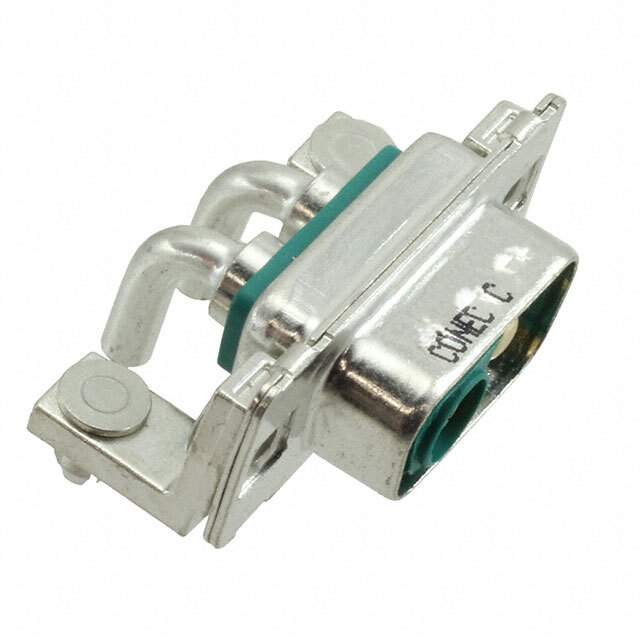

302W2CPXX56N40X Real Image
Same model may have multiple batches, images only for reference.

302W2CPXX56N40X

Part No 302W2CPXX56N40X
Manufacturer Conec
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 2POS R/A SLDR / 2 (Power) Position D-Sub, Combo Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Conec
Package Bulk
Connector Style D-Sub, Combo
Connector Type Plug, Male Pins
Number of Positions 2 (Power)
Number of Rows 1
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) - 2V2, 2W2C
Contact Type Power
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Backset Spacing 0.459" (11.65mm)
Features Board Lock, Grounding Indents, Mounting Brackets
Color Green
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 302W2CP
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1352059-302W2CPXX56N40X
Ultra Librarian 3D Model Ultra Librarian 302W2CPXX56N40X CAD Model

Description

The 1352059-302W2CPXX56N40X is a D-sub connector assembly from Conec.

  • Number of Power Positions: 2
  • Color: Green
  • Connector Type: Plug with Male Pins
  • Contact Type: Power
  • Mounting Type: Through Hole, Right Angle
  • Shell Size: 1 (DE, E) - 2V2, 2W2C
  • Features: Board Lock, Grounding Indents, Mounting Brackets
  • Housing/Shell Flange Feature: (4-40)
  • Shell Material: Steel with Tin Plating
  • Operating Temperature: -55°C to 125°C
