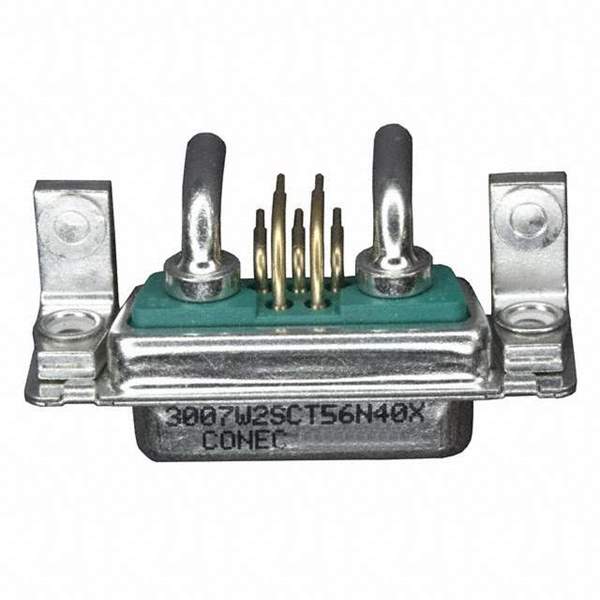

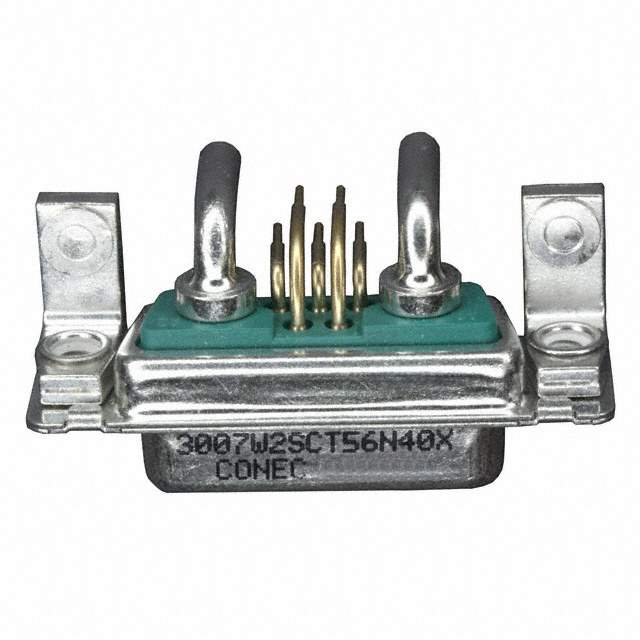

3007W2SCT56N40X Real Image
Same model may have multiple batches, images only for reference.

3007W2SCT56N40X

Part No 3007W2SCT56N40X
Manufacturer Conec
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 7POS R/A SLDR / 7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Datasheet
3007W2SCT56N40X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Conec
Package Tray
Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets
Number of Positions 7 (5 + 2 Power)
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A) - 7W2
Contact Type Signal and Power
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A, 20A
Backset Spacing 0.287" (7.28mm)
Features Board Lock
Voltage Rating 250V
Color Green
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 3007W2S
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351210-3007W2SCT56N40X
Ultra Librarian 3D Model Ultra Librarian 3007W2SCT56N40X CAD Model

Description

The Conec 3007W2S is a D-Sub connector assembly with 7 positions, including 5 signal and 2 power.

  • Color: Green
  • Features: Board Lock
  • Type: Receptacle, Female Sockets
  • Termination: Solder
  • Contact Finish: Gold, 30.0µin (0.76µm)
  • Packaging: Tray
  • Shell Material: Steel, Tin Plating
  • Dielectric Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Operating Temperature: -55°C to 125°C
  • Category: D-Sub, D-Shaped Connectors
