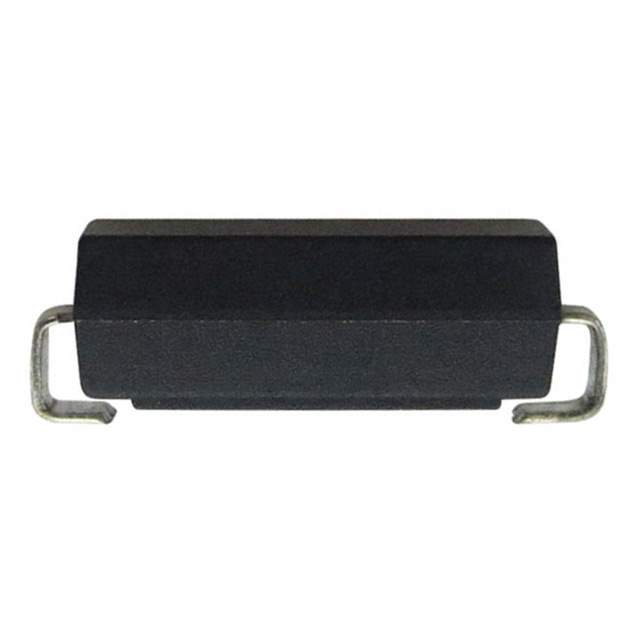

RI80SMDM-0510-J1 Real Image
Same model may have multiple batches, images only for reference.

RI80SMDM-0510-J1

Part No RI80SMDM-0510-J1
Manufacturer Comus International
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 250MA 140V / Molded Body Reed Switch SPST-NO 5 ~ 10AT Operate Range 5W 250mA (AC), 350mA (DC) 140 V Surface Mount
Datasheet
RI80SMDM-0510-J1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Magnetic, Reed Switches
Mfr Comus International
Series RI-80
Package Tape & Reel
Type Molded Body Reed
Circuit SPST-NO
Operate Range 5 ~ 10AT
Current - Switching 250mA (AC) , 350mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 175 V
Power - Rated 5W
Operate Time 0.35 ms
Release Time 0.02 ms
Mounting Type Surface Mount
Termination Style J Lead
Length - Overall 0.295" (7.49mm)
Size - Body 0.275" L x 0.091" W x 0.091" H (7.00mm x 2.31mm x 2.31mm)
Height Above Board 0.095" (2.41mm)
Temperature Range - Operating -40°C ~ 125°C
Current - Carry 500mA (DC)
Base Product Number RI80SMDM
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1349598-RI80SMDM-0510-J1
Ultra Librarian 3D Model Ultra Librarian RI80SMDM-0510-J1 CAD Model

Description

The Comus International RI-80 series of molded body reed switches by Comus International is a reliable and efficient solution for magnetic switches.

  • Switch Type: Magnetic, Reed Switch
  • Circuit: SPST-NO
  • Operate Time: 0.35 ms
  • Release Time: 0.02 ms
  • Operate Range: 5 ~ 10AT
  • Power Rating: 5W
  • Switching Current (AC): 250mA
  • Switching Current (DC): 350mA
  • Carrying Current (DC): 500mA
  • Switching Voltage (Max) (AC): 140 V
  • Switching Voltage (Max) (DC): 175 V
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Height Above Board: 0.095" (2.41mm)
  • Length - Overall: 0.295" (7.49mm)
  • Operating Temperature: -40°C ~ 125°C
