Same model may have multiple batches, images only for reference.

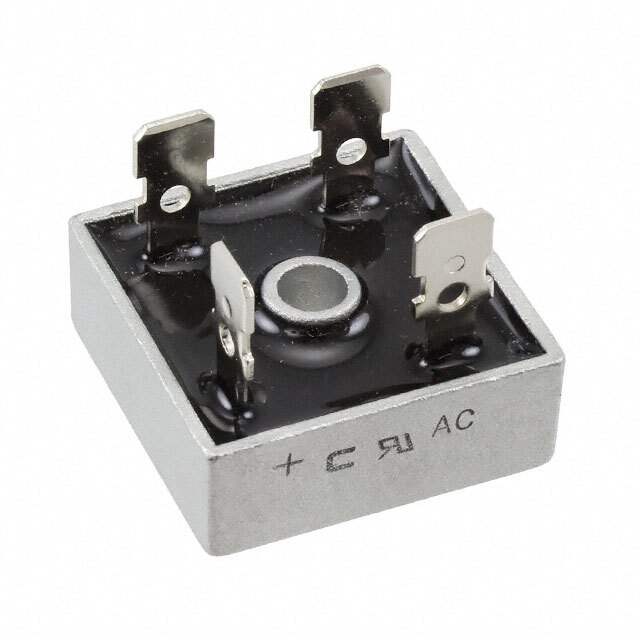

KBPC3506G Real Image
Same model may have multiple batches, images only for reference.

KBPC3506G

Part No KBPC3506G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE DIODE GPP 35A 600V KBPC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Chassis Mount
Case / Package KBPC
Win Source Part Number 205836-KBPC3506G
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Defence, Military & Aerospace
Ultra Librarian 3D Model Ultra Librarian KBPC3506G CAD Model

Description

The Comchip Technology 205836-KBPC3506G is a single-phase standard diode that is designed for power management, defense, military, and aerospace applications.

  • Average Rectified Current: 35A
  • Maximum Forward Voltage: 1.1V @ 17.5A
  • Maximum Peak Reverse Voltage: 600V
  • Packaging: chassis mount
  • Category: discrete semiconductor products
  • Reverse Leakage Current: 10μA @ 600V
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Supply and Demand Status: limited
