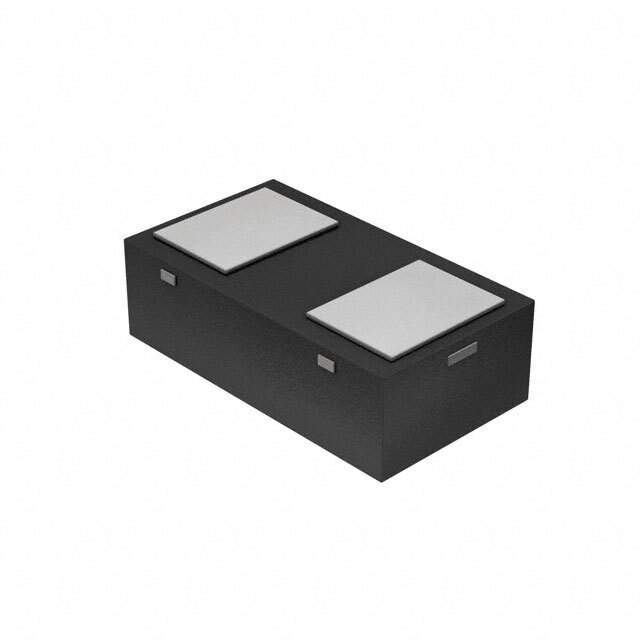

CPDQC24VEU-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQC24VEU-HF

Part No CPDQC24VEU-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 24VWM 42V 0402/SOD923F / 42V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 0402C/SOD-923F
Datasheet
CPDQC24VEU-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Comchip Technology
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 26.5V
Voltage - Clamping (Max) @ Ipp 42V
Current - Peak Pulse (10/1000µs) 2.5A (8/20µs)
Power - Peak Pulse 105W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 35pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 0402 (1006 Metric)
Supplier Device Package 0402C/SOD-923F
Base Product Number CPDQC24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 641-1773-6,641-1773-1,641-1773-2
Standard Package 5,000
Win Source Part Number 974850-CPDQC24VEU-HF
Ultra Librarian 3D Model Ultra Librarian CPDQC24VEU-HF CAD Model

Description

The Comchip Technology CPDQC24VEU-HF is a Zener diode that is designed for general-purpose circuit protection.

  • Packaging: Tape and Reel
  • Mounting Technology: SMD (SMT)
  • Channel: Unidirectional
  • Voltage Reverse Standoff: 24V (Max)
  • Voltage Breakdown (Min): 26.5V
  • Voltage Clamping (Max) @ Ipp: 42V
  • Power Peak Pulse: 105W
  • Capacitance @ Frequency: 35pF @ 1MHz
  • Current Peak Pulse (10/1000µs): 2.5A (8/20µs)
  • Package/Case: 0402 (1006 Metric)
  • Supplier Device Package: 0402C/SOD-923F
  • Operating Temperature Range: -55°C ~ 125°C (TJ)
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
