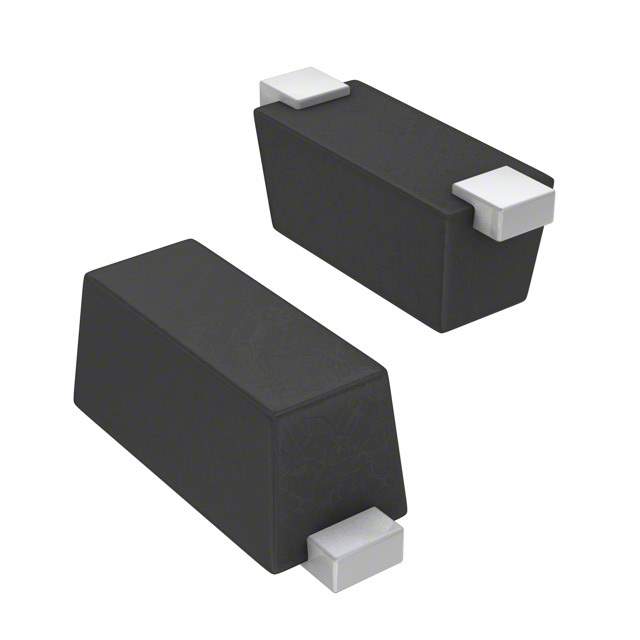

CPDQ5V0USP-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQ5V0USP-HF

Part No CPDQ5V0USP-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.8VC SOD923
Datasheet
CPDQ5V0USP-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 5.4V
Max Clamping Voltage 9.8V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 9.8W
Applications General Purpose
Capacitance @ Frequency 0.5pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030062-CPDQ5V0USP-HF
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Safety
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQ5V0USP-HF CAD Model

Description

The 1030062-CPDQ5V0USP-HF is a Zener type electronic component that is used for general purpose applications. This product is mounted using SMD (SMT) technology and has a capacitance of 0.5pF @ 1MHz.

  • Type: Zener
  • Mounting: SMD (SMT) technology
  • Capacitance: 0.5pF @ 1MHz
  • Manufacturer: Comchip Technology
  • Win Source Part Number: 1030062-CPDQ5V0USP-HF
  • Package: 8k pcs
