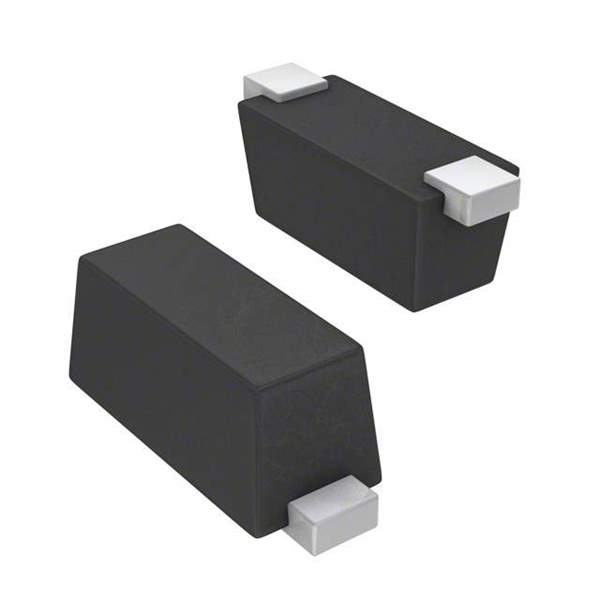

CPDQ3V3-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQ3V3-HF

Part No CPDQ3V3-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 14.1VC SOD923F
Datasheet
CPDQ3V3-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 3.3V
Minimum Breakdown Voltage 5V
Max Clamping Voltage 14.1V
Peak Pulse Current(Ippm) 11.2A (8/20μs)
Power Dissipation - Pd 158W
Applications General Purpose
Capacitance @ Frequency 25pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030059-CPDQ3V3-HF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CPDQ3V3-HF CAD Model

Description

The Comchip Technology CPDQ3V3-HF is a zener type electronic component that is used for general purpose applications.

  • Type: Zener
  • Application: General Purpose
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
  • Capacitance @ Frequency: 25pF @ 1MHz
  • Supply and Demand: Balanced
