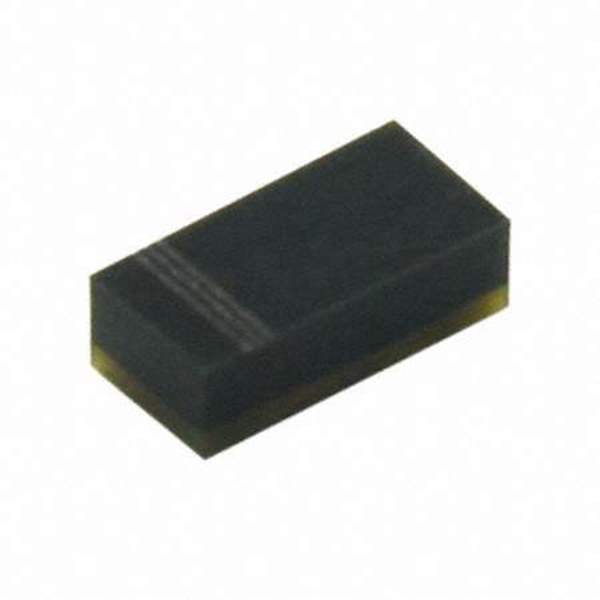

CPDF5V0-HF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 5.1V
Max Clamping Voltage 47V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 75W
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Mounting SMD (SMT)
Case / Package 1005/SOD-323F
Win Source Part Number 1030047-CPDF5V0-HF
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDF5V0-HF CAD Model

Description

The CPDF5V0-HF is a zener diode from Comchip Technology.

  • Manufacturer: Comchip Technology
  • Package: 1005/SOD-323F
  • Application: Circuit protection
  • Capacitance: 15pF @ 1MHz
  • Channel: Bidirectional
  • Stand-off Voltage: 5 V
  • Minimum Breakdown Voltage: 5.1 V
  • Maximum Clamping Voltage: 47 V
  • Peak Pulse Current (Ippm): 1 A (8/20μs)
  • Power Dissipation: 75 W
