Same model may have multiple batches, images only for reference.

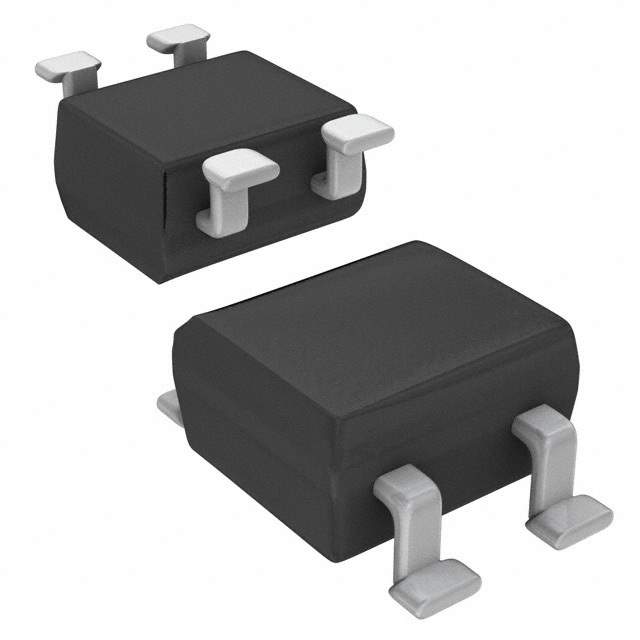

CDBHM260L-HF Real Image
Same model may have multiple batches, images only for reference.

CDBHM260L-HF

Part No CDBHM260L-HF
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 60V 2A MBS-2  /  Bridge Rectifier Single Phase Schottky 60 V Surface Mount MBS-2
Datasheet
CDBHM260L-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Comchip Technology
Package Tape & Reel
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Max) 60 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 2 A
Current - Reverse Leakage @ Vr 1 mA @ 60 V
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case TO-269AA, 4-BESOP
Supplier Device Package MBS-2
Base Product Number CDBHM260
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names Q7132075Z,641-1434-1,641-1434-2,CDBHM260LHF,641-1434-6
Standard Package 3,000
Win Source Part Number 1180752-CDBHM260L-HF
Ultra Librarian 3D Model Ultra Librarian CDBHM260L-HF CAD Model

Description

The CDBHM260L-HF is a Schottky diode bridge rectifier manufactured by Comchip Technology.

  • Current Rating: 2A
  • Voltage Rating: 700mV @ 2A
  • Reverse Leakage Current: 1mA @ 60V
  • Peak Reverse Voltage: 60V
  • Temperature Range: -55°C to 125°C (TJ)
