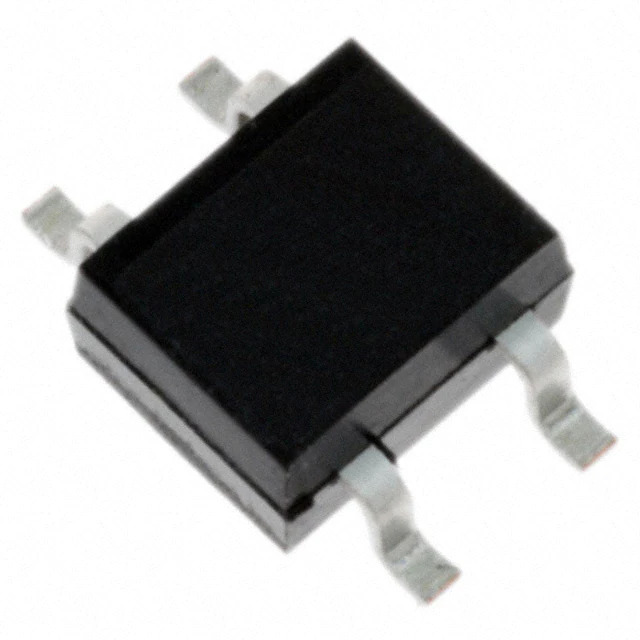

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Max) 60 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 2 A
Current - Reverse Leakage @ Vr 500 µA @ 60 V
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package Mini-Dip (TO-269AA)
Base Product Number CDBHD260
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368013-CDBHD260-G
Ultra Librarian 3D Model Ultra Librarian CDBHD260-G CAD Model

Description

The CDBHD260-G is a bridge rectifier diode from Comchip Technology.

  • Series: CDBHD260
  • Category: Discrete Semiconductor Products
  • Temperature Range: -55°C to 125°C
  • MSL Level: 1 (Unlimited)
  • Packaging: Tape and Reel
  • Mounting Type: Surface Mount
  • Package: TO-269AA, 4-BESOP
  • Forward Voltage: 700mV @ 2A
  • Reverse Leakage Current: 500μA @ 60V
  • Technology: Schottky
