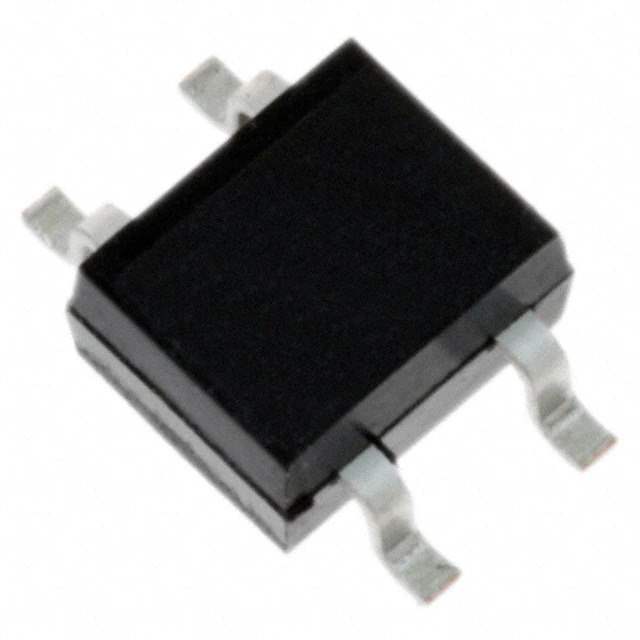

CDBHD240-G Real Image
Same model may have multiple batches, images only for reference.

CDBHD240-G

Part No CDBHD240-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 40V 2A MINI-DIP
Datasheet
CDBHD240-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Max) 40 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 1 A
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package Mini-Dip (TO-269AA)
Base Product Number CDBHD240
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 577795-CDBHD240-G
Ultra Librarian 3D Model Ultra Librarian CDBHD240-G CAD Model

Description

The CDBHD240-G is a single-phase bridge rectifier diode with a current rating of 2 A and a forward voltage drop of 500 mV at 1 A.

  • Current Rating: 2 A
  • Forward Voltage Drop: 500 mV @ 1 A
  • Reverse Leakage Current: 500 µA @ 40 V
  • Peak Reverse Voltage: 40 V
  • Package: TO-269AA, 4-BESOP
  • Mounting: Surface Mount
  • Operating Temperature Range: -55°C to 125°C
