Same model may have multiple batches, images only for reference.

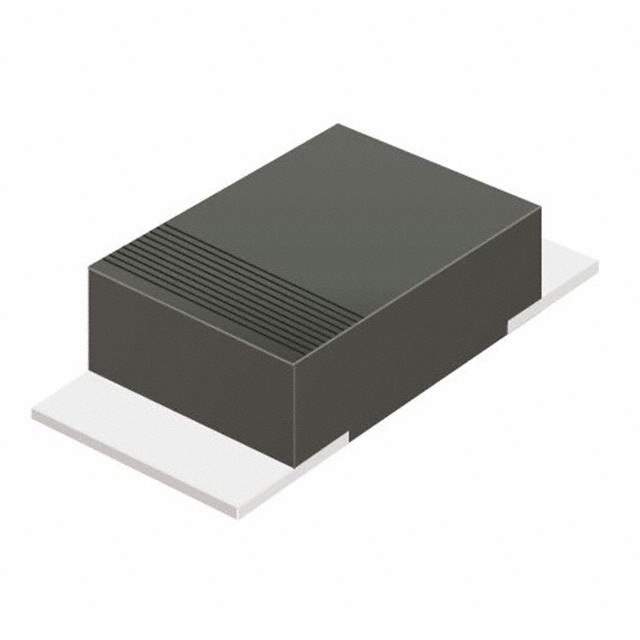

CDBFN140-G Real Image
Same model may have multiple batches, images only for reference.

CDBFN140-G

Part No CDBFN140-G
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A SOD323
Datasheet
CDBFN140-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A (DC)
Voltage - Forward (Vf) (Max) @ If 550mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 40V
Capacitance @ Vr, F 120pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-323
Operating Temperature - Junction -50°C to 125°C
Win Source Part Number 050183-CDBFN140-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CDBFN140-G CAD Model

Description

Description

The CDBFN140-G diode provides reliable performance in high-frequency applications. With its efficient design, it is a preferred choice for engineers focusing on speed and efficiency.

Features and Benefits

  • Low forward voltage drop, enhancing efficiency.
  • High-speed switching capabilities.
  • Excellent temperature performance.

Applications

  • Signal modulation systems
  • Telecommunications equipment
  • High-speed data circuits
