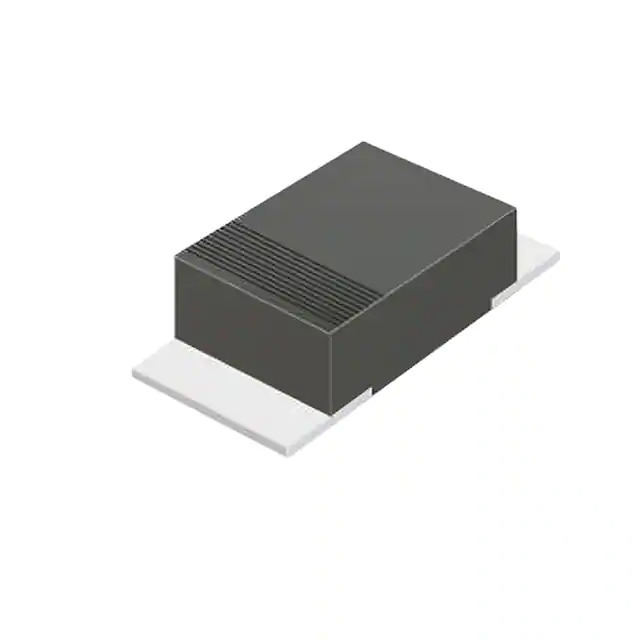

Same model may have multiple batches, images only for reference.
ACGRKM4007-HF Comchip Technology
Same model may have multiple batches, images only for reference.

ACGRKM4007-HF

Part No ACGRKM4007-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 1A KM/SOD123F
Datasheet
ACGRKM4007-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123T
Supplier Device Package KM/SOD-123F
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number ACGRKM4007
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368203-ACGRKM4007-HF
Ultra Librarian 3D Model Ultra Librarian ACGRKM4007-HF CAD Model

Description

The ACGRKM4007-HF is a standard rectifier diode from Comchip Technology.

  • Package: Surface Mountable SOD-123T
  • Maximum Reverse Voltage: 1000V
  • Average Rectified Current: 1A
  • Forward Voltage Drop: 1.1V @ 1A
  • Speed: Greater than 500ns (Standard Recovery)
  • Reverse Leakage Current: 5µA @ 1000V
  • Capacitance: 15pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • REACH: Unaffected
