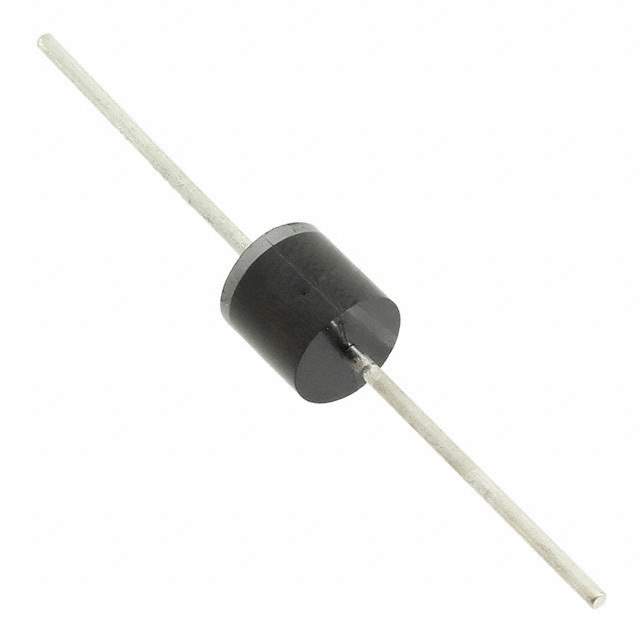

5KP8.5CA-G Real Image
Same model may have multiple batches, images only for reference.

5KP8.5CA-G

Part No 5KP8.5CA-G
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 8.5VWM 14.4VC R6
Datasheet
5KP8.5CA-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging AMMO PACKAGE
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 8.5V
Minimum Breakdown Voltage 9.44V
Max Clamping Voltage 14.4V
Peak Pulse Current(Ippm) 347.22A
Power Dissipation - Pd 5000W (5kW)
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package R-6
Win Source Part Number 1006424-5KP8.5CA-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 250
Ultra Librarian 3D Model Ultra Librarian 5KP8.5CA-G CAD Model

Description

The 5KP8.5CA-G is a Zener diode manufactured by Comchip Technology.

  • Purpose: General
  • Channel: Bidirectional
  • Packaging: Through-Hole
  • Case/Package: R-6
  • Standard-Off Voltage (Vwm): 8.5V
  • Minimum Breakdown Voltage: 9.44V
  • Maximum Clamping Voltage: 14.4V
  • Peak Pulse Current(Ippm): 347.22A
  • Power Dissipation - Pd: 5000W (5kW)
  • Market Status: Active
  • Supply and Demand Status: Balanced
  • Package: 250
