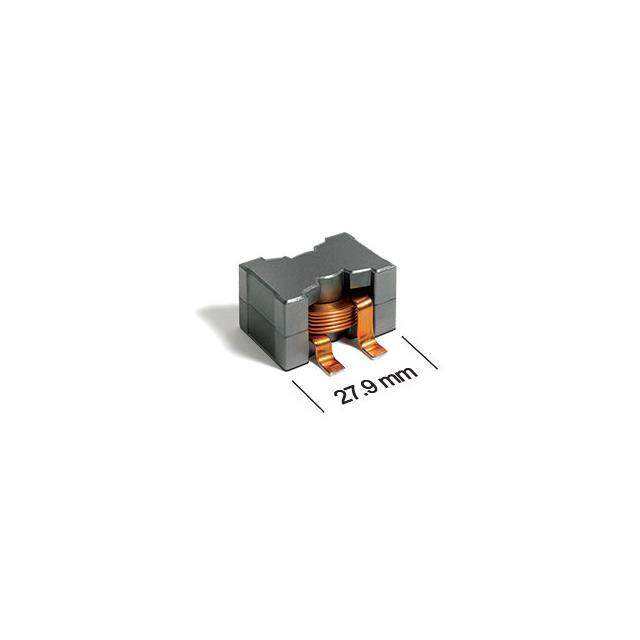

SER2918H-103KL Real Image
Same model may have multiple batches, images only for reference.

SER2918H-103KL

Part No SER2918H-103KL
Manufacturer Coilcraft
Catalog Fixed Inductors
Description POWER INDUCTOR, HIGH CURRENT, 10 / 10 µH Shielded Inductor 28 A 2.86mOhm Max Nonstandard
Datasheet
SER2918H-103KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Coilcraft
Packaging Strip
Material - Core Ferrite
Inductance 10 µH
Current Rating (Amps) 28 A
Current - Saturation (Isat) 32.1A
Shielding Shielded
DC Resistance (DCR) 2.86mOhm Max
Frequency - Self Resonant 20MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 500 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 1.100" L x 1.098" W (27.94mm x 27.90mm)
Height - Seated (Max) 0.700" (17.78mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Part Number 2457-SER2918H-103KL
Standard Package 1
Win Source Part Number 1327848-SER2918H-103KL
Ultra Librarian 3D Model Ultra Librarian SER2918H-103KL CAD Model

Description

This fixed inductor has a shielded packaging and a size of 1.100" L x 1.098" W.

  • Shielding: Shielded
  • Size: 1.100" L x 1.098" W
  • Inductance: 10 microhenries
  • Maximum DC Resistance: 2.86 milliohms
  • Current Rating: 28A
  • Saturation Current: 32.1A
  • Operating Temperature: -40 to 125 degrees Celsius
  • Material: Ferrite
  • Series: SER2918H-103KL
  • Supplier: Coilcraft
  • AEC-Q200: Yes
