Same model may have multiple batches, images only for reference.

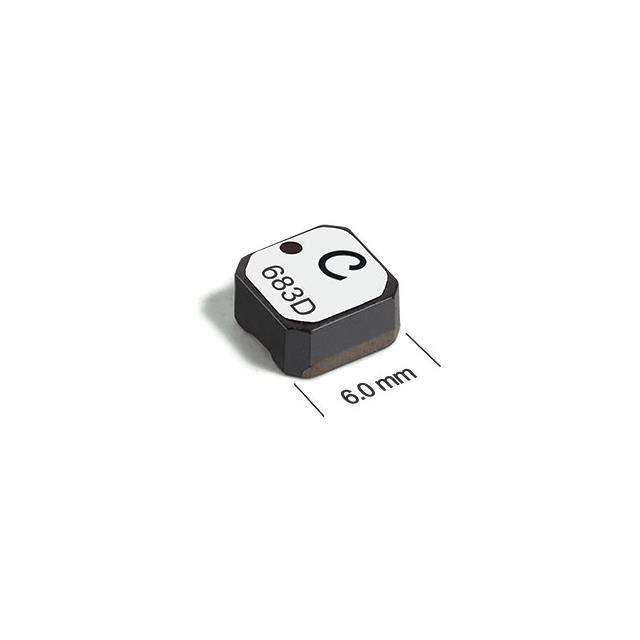

LPS6235-155MRC Real Image
Same model may have multiple batches, images only for reference.

LPS6235-155MRC

Part No LPS6235-155MRC
Manufacturer Coilcraft
Catalog Fixed Inductors
Description POWER INDUCTOR, SHIELDED, 20% TO / 1.5 mH Shielded Inductor 260 mA 4.6Ohm Max Nonstandard
Datasheet
LPS6235-155MRC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr COILCRAFT
Series LPS6235
Package Strip
Material - Core Ferrite
Inductance 1.5 mH
Current Rating (Amps) 260 mA
Current - Saturation (Isat) 140mA
Shielding Shielded
DC Resistance (DCR) 4.6Ohm Max
Frequency - Self Resonant 1.9MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.244" L x 0.244" W (6.20mm x 6.20mm)
Height - Seated (Max) 0.138" (3.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names 2457-LPS6235-155MRC
Standard Package 1
Win Source Part Number 991416-LPS6235-155MRC
Ultra Librarian 3D Model Ultra Librarian LPS6235-155MRC CAD Model

Description

The LPS6235-155MRC is a fixed inductor from COILCRAFT.

  • Package: Shielded
  • Inductance: 1.5 mH
  • Maximum Seated Height: 0.138" (3.50mm)
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 4.6Ohm Max
  • Operating Temperature: -40°C to 125°C
  • Dimension: 0.244" L x 0.244" W (6.20mm x 6.20mm)
  • Current Rating: 260 mA
  • AEC-Q200: Rated
  • REACH: Unaffected
