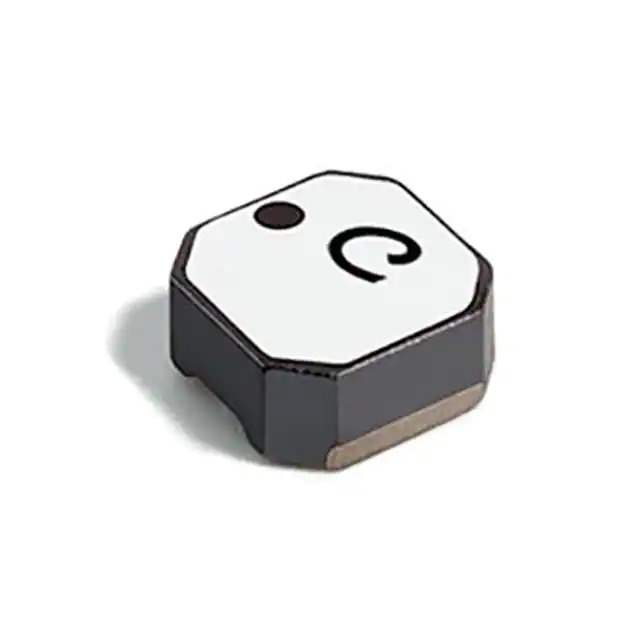

LPS4018-564MRC Real Image
Same model may have multiple batches, images only for reference.

LPS4018-564MRC

Part No LPS4018-564MRC
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 560UH 180MA 10 OHM SMD
Datasheet
LPS4018-564MRC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr COILCRAFT
Series LPS4018
Package Strip
Product Status Active
Type Drum Core
Material - Core Ferrite
Inductance 560 µH
Tolerance ±20%
Current Rating (Amps) 140 mA
Current - Saturation (Isat) 130mA
Shielding Shielded
DC Resistance (DCR) 10Ohm Max
Frequency - Self Resonant 4MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.154" L x 0.154" W (3.90mm x 3.90mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 828235-LPS4018-564MRC
Ultra Librarian 3D Model Ultra Librarian LPS4018-564MRC CAD Model

Description

The 828235-LPS4018-564MRC is a fixed inductor designed for high inductance applications.

  • Core Design: Drum core
  • Shielding: Shielded
  • Inductance: 560 μH
  • Tolerance: ±20%
  • Maximum Current Rating: 140 mA
  • DC Resistance: 10 Ohm
  • Size: 0.154" L x 0.154" W (3.90mm x 3.90mm)
  • Height: 0.071" (1.80mm)
  • Operating Temperature: -40°C to 125°C
  • Standard: AEC-Q200
  • Mounting: Surface mountable
  • Manufacturer: COILCRAFT
  • Product Status: Active
