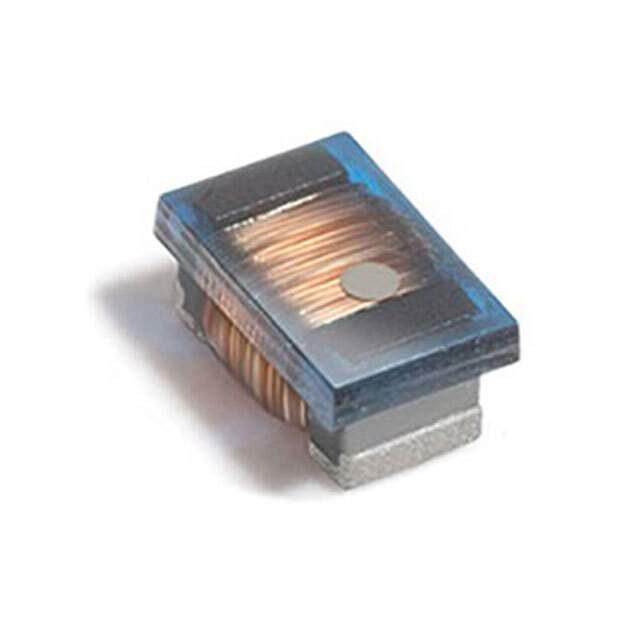

0603AF-472XJRW Real Image
Same model may have multiple batches, images only for reference.

0603AF-472XJRW

Part No 0603AF-472XJRW
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 4.7UH 260MA 1.5OHM SMD / 4.7 µH Unshielded Inductor 260 mA 1.5Ohm Max 0603 (1608 Metric)
Datasheet
0603AF-472XJRW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr COILCRAFT
Series 0603AF
Package Strip
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±5%
Current Rating (Amps) 260 mA
Shielding Unshielded
DC Resistance (DCR) 1.5Ohm Max
Q @ Freq 16 @ 7.9MHz
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 7.9 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max) 0.036" (0.91mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 2457-0603AF-472XJEW,2457-0603AF-472XJE_TR-ND,2457-0603AF-472XJE_-ND,2457-0603AF-472XJE_,2457-0603AF-472XJRW
Standard Package 1
Win Source Part Number 1033778-0603AF-472XJRW
Ultra Librarian 3D Model Ultra Librarian 0603AF-472XJRW CAD Model

Description

The 0603AF-472XJRW is a fixed inductor from Coilcraft.

  • Inductance: 4.7 µH
  • Tolerance: ±5%
  • Core Material: ferrite
  • Q @ Freq: 16 @ 7.9MHz
  • Mounting: surface mountable
  • Case/Package: 0603 (1608 Metric)
  • DC Resistance (DCR): 1.5Ohm Max
  • Current Rating: 260 mA
  • Temperature Range: -40°C to 85°C
