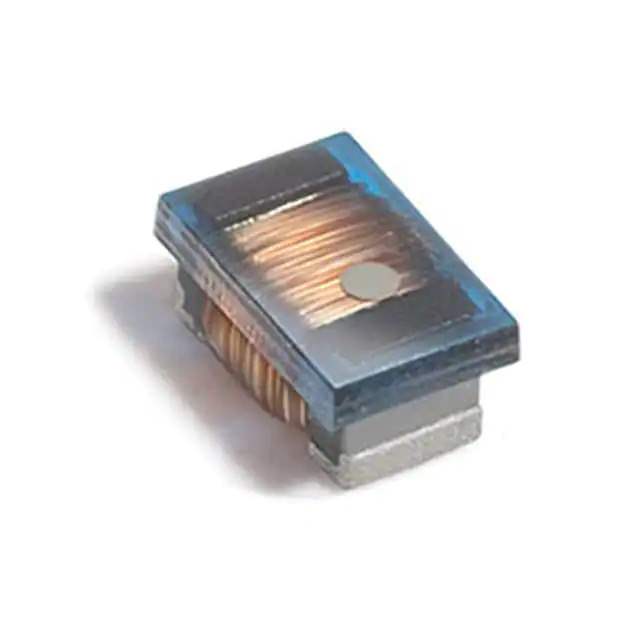

Same model may have multiple batches, images only for reference.

0603AF-33NXJRW

Name: 0603AF-33NXJRW
Brand: Coilcraft
SKU: 721271
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0603AF-33NXJRW
Manufacturer	Coilcraft
Catalog	Fixed Inductors
Description	FIXED IND 33NH 1.9A 28 MOHM SMD
Datasheet	0603AF-33NXJRW Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	COILCRAFT
Series	0603AF
Package	Strip
Product Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	33 nH
Tolerance	±5%
Current Rating (Amps)	1.9 A
Shielding	Unshielded
DC Resistance (DCR)	28mOhm Max
Q @ Freq	13 @ 7.9MHz
Frequency - Self Resonant	2.3GHz
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	7.9 MHz
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Size / Dimension	0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max)	0.036" (0.91mm)
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	721271-0603AF-33NXJRW
Ultra Librarian 3D Model	Ultra Librarian 0603AF-33NXJRW CAD Model

Alternative Products

Description

The 721271-0603AF-33NXJRW is a strip package unshielded fixed inductor from Coilcraft.

Series: 0603AF
Mounting Type: Surface Mount
Type: Wirewound
Size / Dimension: 0.071" L x 0.044" W (1.80mm x 1.12mm)
Seated Height: 0.036" (0.91mm)
Inductance: 33nH
Tolerance: ±5%
DC Resistance (DCR): 28mOhm
Operating Temperature: -40°C to 85°C
Current Rating: 1.9A
Frequency - Self Resonant: 2.3GHz
Core Material: Ferrite
Applications: telecommunications, consumer electronics, and automotive systems
